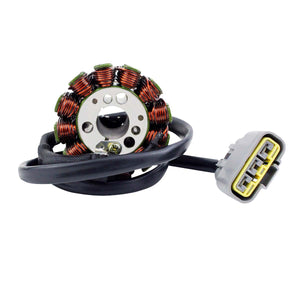

RMStator Generator Stator RM01303

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All product shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 18 mm
Exterior diameter : 68 mm
Thickness : 42 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 500 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : Between each White = 0.4 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01303

Fitment:

• 2006-2015 Yamaha FZ1 1000
• 2011-2015 Yamaha FZ1 N Fazer 1000
• 2011-2013 Yamaha FZ8 800
• 2011-2013 Yamaha FZ8 N Fazer 800
• 2015 Yamaha FZS1
• 2004-2008 Yamaha YZF R1 1000

Note: Image is for reference only, actual product may vary slightly.
