RMStator Stator RM01309
Customer Ratings
RMStator Stator RM01309
RMStator Stator RM01309

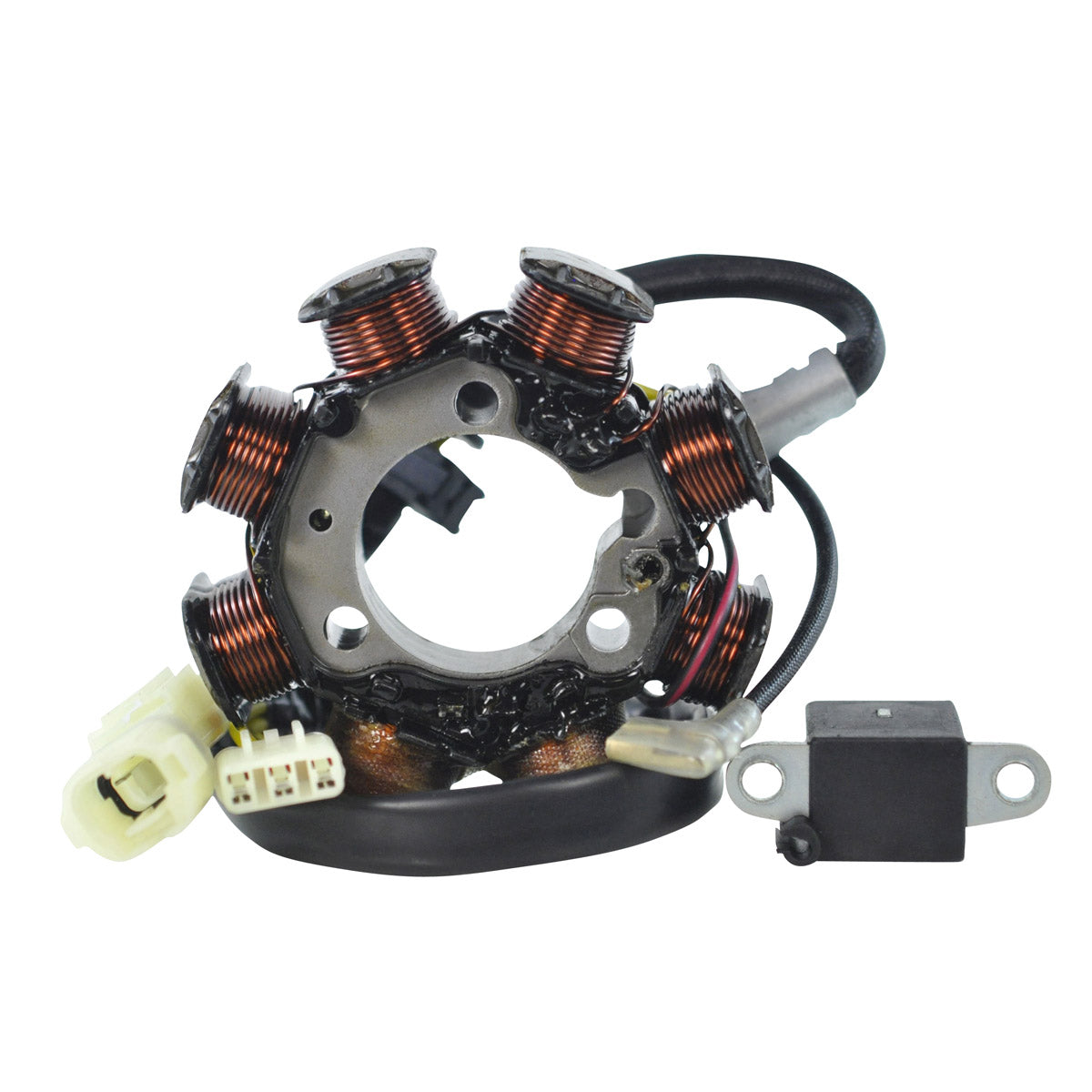

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pickup pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 34 mm
Exterior diameter : 88 mm
Thickness : 18 mm
Length of wires stator to grommet : 95 mm
Length of wires grommet to plug : 250 mm
Length of pickup coil's wire to grommet : 110 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +/-20%
Pickup : Blue/Yellow to Green = 280 ohms +/-20%
Source : Black/Red to Green = 190 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01309
Fitment:
- 1997-2001 Honda Recon 250 TRX250 2x4
- 2002-2004 Honda Recon 250 TRX250TE 2x4 ES
- 2002-2004 Honda Recon 250 TRX250TM 2x4
- 2001-2005 Honda Sportrax 250 TRX250EX 2x4
Note: Image is for reference only, actual product may vary slightly.
