RMStator Stator RM01315

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 103 mm
Thickness : 15 mm
Length of wires stator to plug 1: 200 mm
Length of wires stator to plug 2: 370 mm

Other specifications :

Number of wires : 6
Number of plugs : 2
Number of pins : 6

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Source : Black/Red to Red = 13 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01315

Fitment:

• 1998-2000 Ski-doo Formula 500 Deluxe LC Carb
• 1998 Ski-doo Formula 500 LC Carb
• 2000 Ski-doo Formula 500 LC Carb
• 1998-1999 Ski-doo Formula 583 Carb L/C
• 1999 Ski-doo Formula 670 Deluxe Carb L/C
• 1999 Ski-doo Formula Z 500 Carb L/C
• 1998-1999 Ski-doo Formula Z 583 Carb L/C
• 1998-1999 Ski-doo Formula Z 670 Carb L/C
• 1998-1999 Ski-doo Grand Touring 500 Carb
• 1998-1999 Ski-doo Grand Touring 583 Carb L/C
• 1998 Ski-doo MX Z 580 Carb L/C
• 1998-1999 Ski-doo MXZ 500 Carb L/C
• 1998 Ski-doo MXZ 670 Carb L/C
• 1999 Ski-doo MXZ 670 HO Carb L/C
• 2000 Ski-doo Skandic 500 Carb F/C
• 1998-2000 Ski-doo Skandic 500F SWT Carb L/C
• 1998-2000 Ski-doo Skandic 500F WT Carb L/C
• 1998-1999 Ski-doo Summit 500 Carb L/C
• 1998 Ski-doo Summit 583 Carb L/C
• 1998 Ski-doo Summit 670 Carb L/C
• 1998-1999 Ski-doo Summit X 670 Carb L/C
• 2000 Ski-doo Touring 500 LC Carb

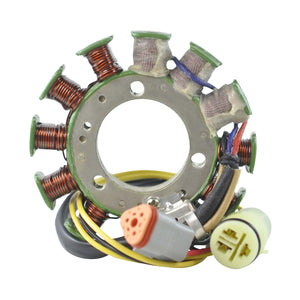

Note: Image is for reference only, actual product may vary slightly.
