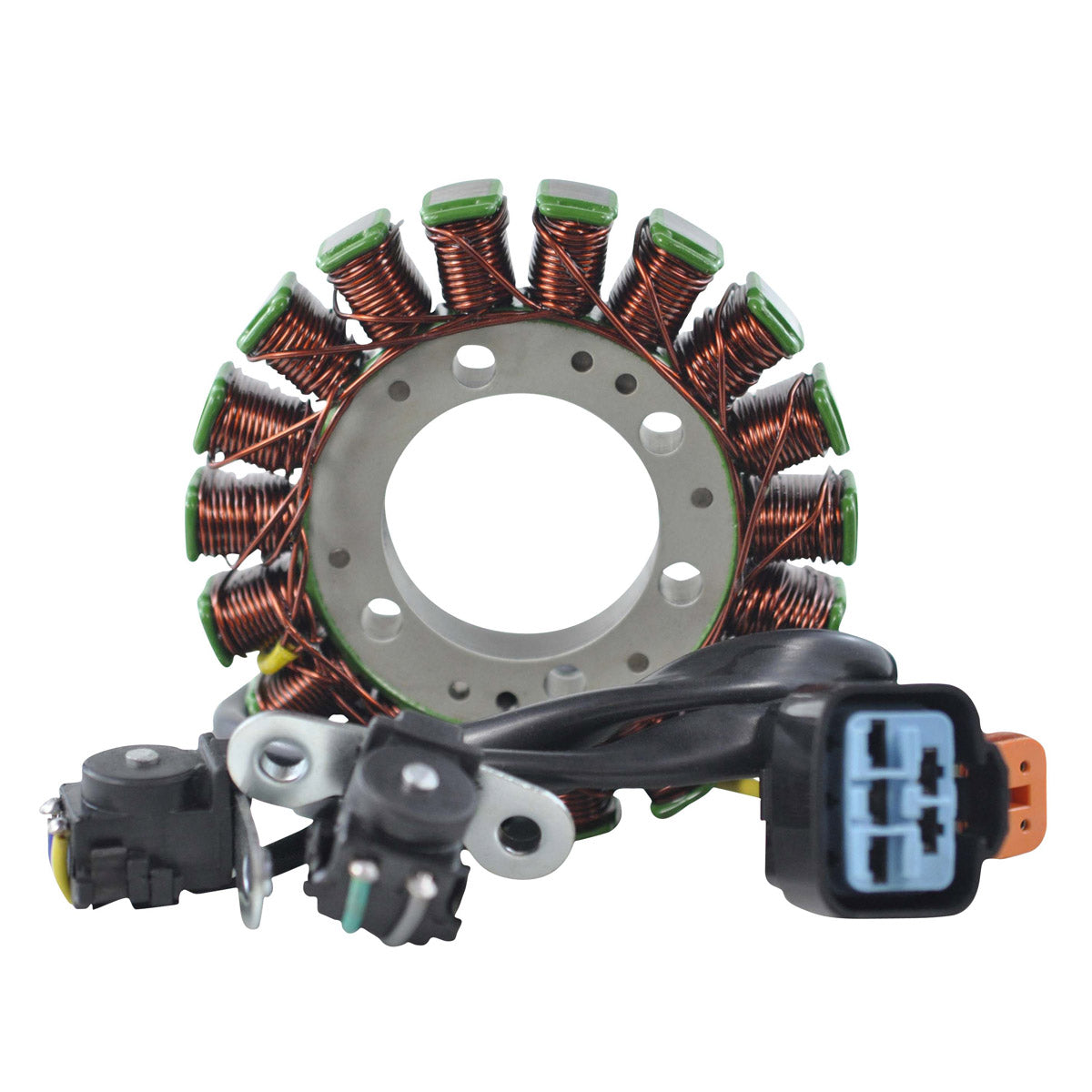

RMStator Stator RM01326

Brand new generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 15mm
Length of wires stator to connectors : 300mm
Length of pickup coil's wire to connectors : 380mm

Other specifications :

Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :

Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Grey to Green = 300ohms +/-20%
Pickup : Yellow/White to Blue = 300ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01326

Fitment:

• 2010 Lynx Rave 600
• 2009-2010 Lynx Rave RE 800 R
• 2008 Lynx Rave RS 600
• 2010 Lynx Xtrim 800 R
• 2010-2014 Ski-doo Grand Touring 600 Sport Carb L/C
• 2008-2009 Ski-doo GSX 500SS Sport Carb L/C
• 2010 Ski-doo GSX 600 Sport Carb L/C
• 2008 Ski-doo GSX 800R Limited Power TEK Carb L/C
• 2009 Ski-doo GTX 500SS Sport Carb L/C
• 2008 Ski-doo MXZ 500SS TNT Carb L/C
• 2008-2009 Ski-doo MXZ 500SS Trail Carb L/C
• 2010-2020 Ski-doo MXZ 600 Sport Carb L/C
• 2010-2012 Ski-doo MXZ 600 TNT Carb L/C
• 2008 Ski-doo MXZ 600RS Carb L/C
• 2008-2010 Ski-doo MXZ 800R Adrenaline Carb L/C
• 2008-2009 Ski-doo MXZ 800R Renegade Power TEK Carb L/C
• 2008-2009 Ski-doo MXZ 800R Renegade X Power TEK Carb L/C
• 2011 Ski-doo MXZ 800R TNT Power TEK Carb L/C
• 2009-2010 Ski-doo MXZ X 800R Carb L/C
• 2010 Ski-doo MXZ XRS 800R E-TEC Carb L/C
• 2015-2020 Ski-doo Renegade 600 Sport Carb L/C
• 2010-2011 Ski-doo Renegade 800R Adrenaline E-TEC Carb L/C
• 2010-2011 Ski-doo Renegade 800R Back Country E-TEC Carb L/C
• 2011 Ski-doo Renegade 800R SP Power TEK Carb L/C
• 2010 Ski-doo Renegade X 800R Back Country E-TEC L/C
• 2010 Ski-doo Renegade X 800R E-TEC Carb L/C
• 2009 Ski-doo Summit 500 SS Everest Carb L/C
• 2010-2020 Ski-doo Summit 600 Sport Carb L/C
• 2009 Ski-doo Summit 800R Everest
• 2008-2011 Ski-doo Summit 800R Everest Carb L/C
• 2011 Ski-doo Summit 800R SP E-TEC Carb L/C
• 2012-2016 Ski-doo Summit 800R Sport Carb L/C
• 2008-2010 Ski-doo Summit X 800R Carb L/C
• 2009-2010 Ski-doo Summit X 800R Hillclimb Carb L/C

Note: Image is for reference only, actual product may vary slightly.
