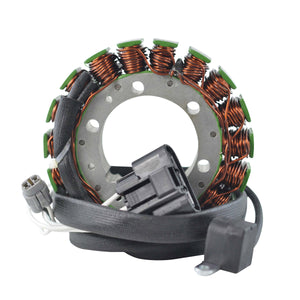

RMStator Stator RM01329

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 27.5 mm
Length of wires stator to grommet : 135 mm
Length of wires grommet to plug 1 : 875 mm
Length of wires grommet to plug 2 : 940 mm
Length of pickup coil's wire to grommet : 160 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :

Alternator : White Between Each White = 0.6 ohms +/-20%
Pickup : Black To White = 500 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01329

Fitment:

• 2006-2010 Yamaha Apex 1000
• 2006-2007 Yamaha Attak RXW10
• 2007 Yamaha Attak GT RXW10GT
• 2004-2005 Yamaha RX Warrior RXW10
• 2003-2005 Yamaha RX1 RX10

Note: Image is for reference only, actual product may vary slightly.
