RMStator Stator For 2011-2018 Yamaha Apex 1000 RM01363
RMStator Stator For 2011-2018 Yamaha Apex 1000 RM01363

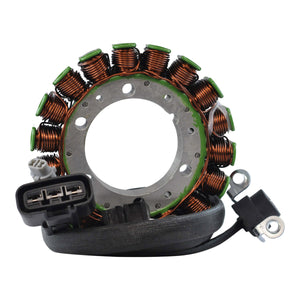

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 50 mm
Exterior diameter: 115 mm
Thickness: 30 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 750 mm
Length of pickup coil's wire to grommet: 100 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Wire to wire resistance:
Alternator 3p: Between each White = 0.4 ohms +/-20%
Pickup: Black to White = 280 ohms =+/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01363
Fitment:
- 2011-2018 Yamaha Apex 1000
Note: Image is for reference only, actual product may vary slightly.
