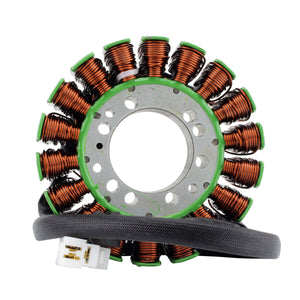

RMStator Generator Stator RM01390

Brand new generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 115 mm
Width : 22 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of terminals : 3
Harness length Stator to grommet : 110 mm
Harness length grommet to plug : 600 mm

Wire to wire resistance :

Alternator : Black between each Black = 0.5 ohms +/- 20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01390

Fitment:

• 1994-2018 Triumph Speed Triple 1050
• 2011-2017 Triumph Speed Triple R 1050
• 2010-2020 Triumph Sprint GT 1050
• 2005-2012 Triumph Sprint ST 1050
• 2019-2020 Triumph Sprint ST 1050
• 2006-2018 Triumph Tiger 1050

Note: Image is for reference only, actual product may vary slightly.
