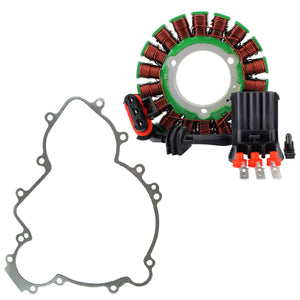

RMStator Stator Stator And Crankcase Cover Gasket Kit RM01394G

Brand New Kit Stator + Crankcase Cover Gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• Crankcase cover gasket included
• All product shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Stator Dimensions:
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 19 mm
Length of wires stator to grommet : 85 mm
Length of wires grommet to plug : 290 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : Black between each Black = 0.4 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01394G

Fitment:

• 2016-2018 Polaris ACE 900 XC Edition
• 2016-2020 Polaris General 1000 EPS
• 2017-2020 Polaris General 4 1000
• 2017-2018 Polaris Ranger 900 Diesel
• 2014-2017 Polaris Ranger Crew 900
• 2017-2018 Polaris Ranger Crew XP 1000
• 2017-2018 Polaris Ranger Crew XP 900
• 2017-2018 Polaris Ranger XP 1000
• 2013-2019 Polaris Ranger XP 900
• 2014-2018 Polaris RZR 4 900 EPS
• 2013-2014 Polaris RZR 4 900 EPS INTL
• 2014-2020 Polaris RZR 4 XP 1000 EPS
• 2013 Polaris RZR 4 XP 900
• 2015 Polaris RZR 4 XP 900
• 2014-2020 Polaris RZR 900
• 2014 Polaris RZR 900 INTL
• 2015-2017 Polaris RZR S 900
• 2020 Polaris RZR S 900
• 2016-2020 Polaris RZR XP Turbo 900
• 2014-2020 Polaris RZR XP 1000 EPS
• 2014 Polaris RZR XP 1000 EPS INTL
• 2016-2019 Polaris RZR XP 4 Turbo EPS 900
• 2013 Polaris RZR XP 900
• 2018 Polaris Sportsman 450 HO

Note: Image is for reference only, actual product may vary slightly.
