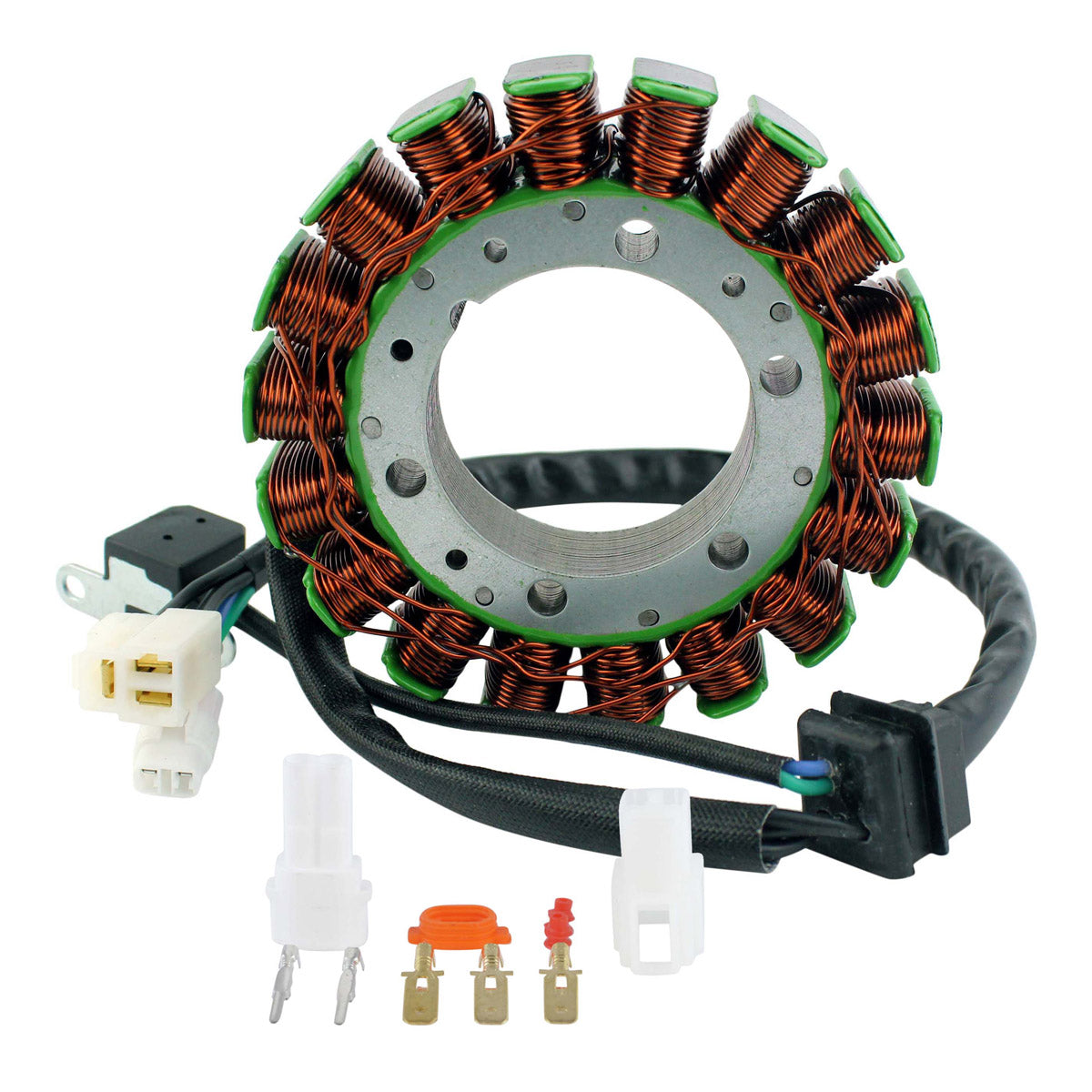

RMStator Stator RM01411

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• Pick-up Pulsar Coil included
• All product shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Alternator resistance (Yellow to Yellow) : 0.4 ohms +/- 20%
Pick-up 1 resistance (Blue to White) : 220 ohms +/- 20%
Number of wires : 5
Number of plugs : 2
Number of terminals : 5
Harness length - Stator to grommet (mm) : 150
Harness length - Grommet to plug (mm) : 240
Pick-up coil wire length - Coil to grommet (mm) : 100
Inside diameter (mm) : 53
Outside diameter (mm) : 115
Thickness (mm) : 18

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01411

Fitment:

• 2007-2010 Suzuki King Quad 450 LTA450X 4x4 AXi
• 2009 Suzuki King Quad 500 LTA500X 4x4 AXi
• 2011-2018 Suzuki King Quad 500 LTA500X 4x4 AXi

Note: Image is for reference only, actual product may vary slightly.
