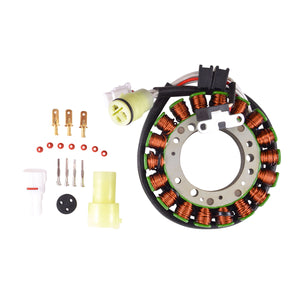

RMStator Generator Stator RM01422

Brand new generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 17mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 330mm
Length of pickup coil's wire to grommet : 50mm

Other specifications :

Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :

Alternator : White between each White = 0.4ohms +/-20%
Pickup : Red to White = 500ohms +/-20%
Source : Red to Blue = 0.2ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01422

Fitment:

• 2011-2014 Yamaha Grizzly 450 YFM450FGP 4x4 EPS

Note: Image is for reference only, actual product may vary slightly.
