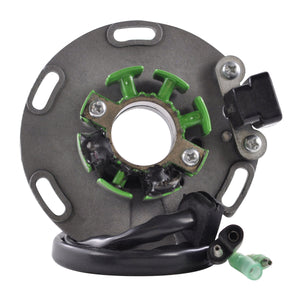

RMStator Stator RM01454
Customer Ratings
RMStator Stator RM01454
RMStator Stator RM01454
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Rubber grommet included
- Back Plate included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 58 mm
Thickness : 12 mm
Length of wires stator to grommet : 65 mm
Length of wires grommet to plug : 500 mm
Length of pickup coil's wire to grommet : 95 mm
Other specifications :
Number of wires : 4
Number of pins : 4
Wire to wire resistance :
Pickup : Red to Green = 140 ohms +/-20%
Source : White/Red to Black/Red = 28 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01454
Fitment:
- 1989-1995 Suzuki RM125
- 1994-1995 Suzuki RM250
Note: Image is for reference only, actual product may vary slightly.
