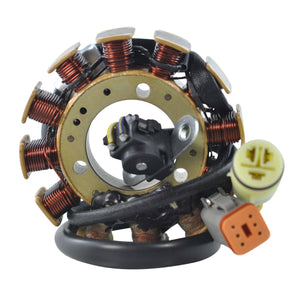

RMStator Stator RM01456
Customer Ratings
RMStator Stator RM01456
RMStator Stator RM01456
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 20mm
Length of wires stator to connectors : 380mm
Length of pickup coil's wire to connector : 400mm
Other specifications :
Number of wires : 9
Number of plugs : 2
Number of pins : 9
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4ohms +/-20%
Pickup : Blue/Yellow to Yellow/White = 300ohms +/-20%
Source : Red to Black/Red = 35ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01456
Fitment:
- 1999 Ski-doo Mach 1 R 700 Carb L/C
- 1999 Ski-doo Mach Z 800 M. H. R Carb L/C
- 1999 Ski-doo Mach Z 800R Carb L/C
- 1999 Ski-doo Mach Z 800R LT Carb L/C
Note: Image is for reference only, actual product may vary slightly.
