RMStator Stator RM01497
Customer Ratings

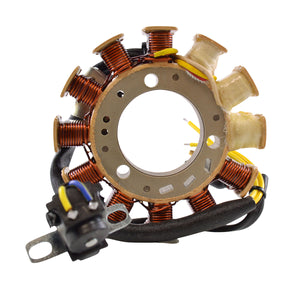

RMStator Stator RM01497
RMStator Stator RM01497
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 14mm
Fixation holes center to center: 35mm
Length of wires stator to plug : 160mm
Length of pickup coil's wire to grommet : 160mm
Other specifications :
Number of wires : 8
Number of plugs : 4
Number of pins :8
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.8ohms +/-20%
Pickup : Blue/White to Yellow = 250ohms +/-20%
Source : Red to White = 60ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01497
Fitment:
- 1995 Ski-doo Formula 600 Deluxe Carb L/C
- 1995-1997 Ski-doo Formula III 600 Carb L/C
- 1993-1997 Ski-doo Formula Mach Z 780 Carb L/C
- 1996-1997 Ski-doo Formula Mach Z 780 LT Carb L/C
- 1997 Ski-doo Mach 1 700 Carb L/C
- 1997 Ski-doo Mach Z 800 Carb L/C
Note: Image is for reference only, actual product may vary slightly.
