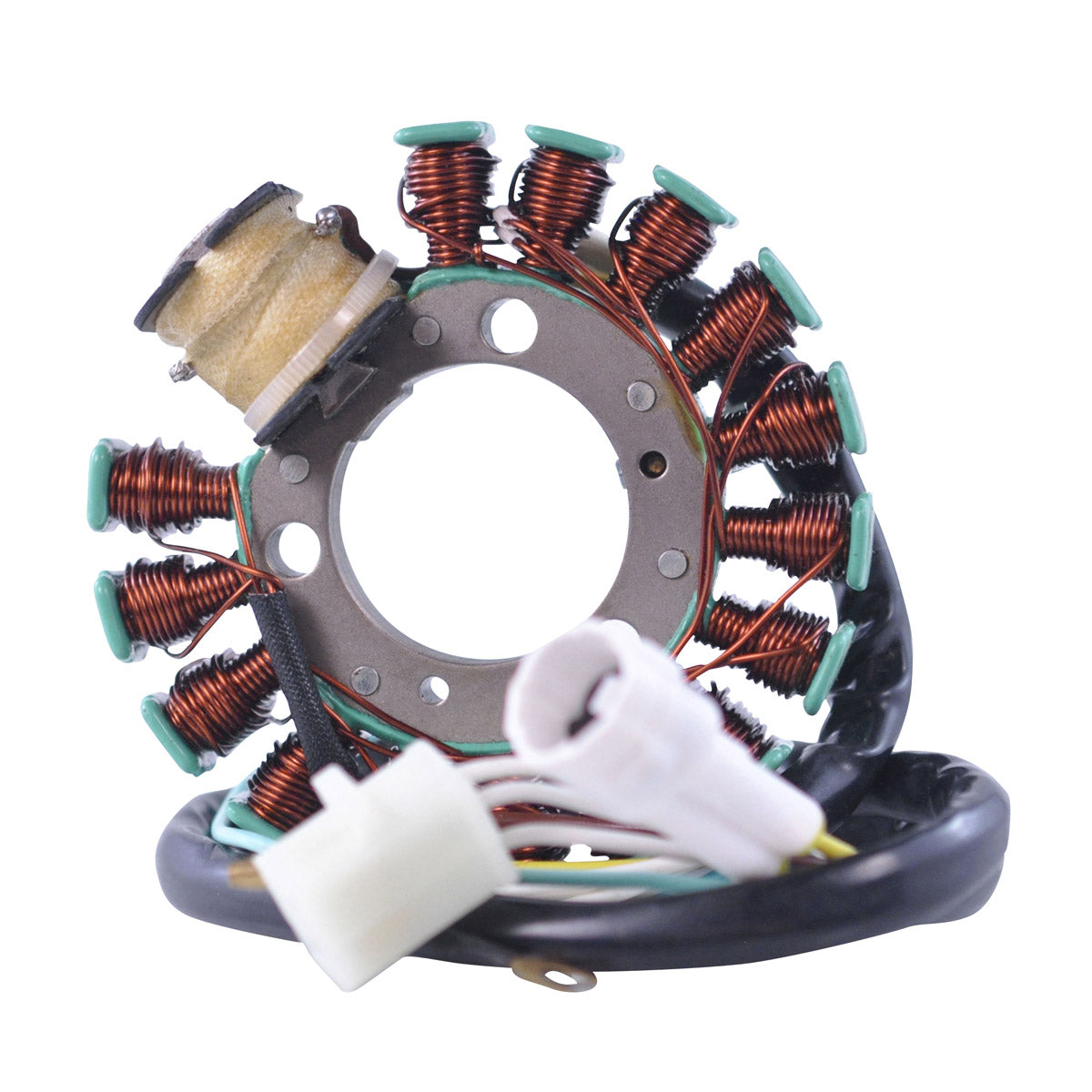

RMStator Stator RM01547

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 36mm
Exterior diameter : 97mm
Thickness : 15mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 470mm

Other specifications :

Number of wires : 7
Number of plugs : 4

Wire to wire resistance :

Alternator : White to White = 1.0ohms +/-20%
Source 1 :Yellow to Brown = 126ohms +/-20%
Source 2: Yellow to Green = 616ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01547

Fitment:

• 1999-2004 Yamaha TTR225
• 2001-2007 Yamaha XT225

Note: Image is for reference only, actual product may vary slightly.
