RMStator Generator Stator RM01573
Customer Ratings

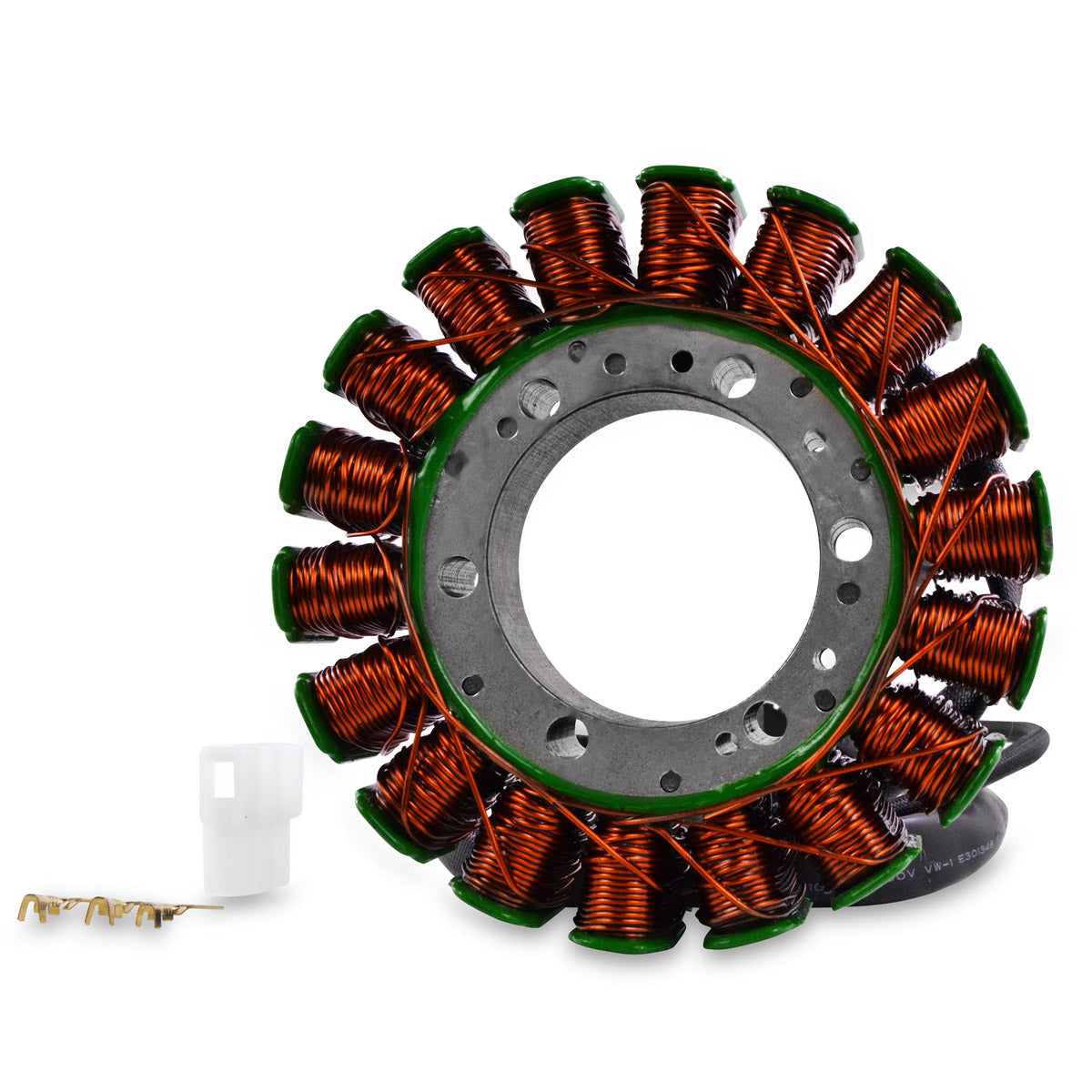

RMStator Generator Stator RM01573
RMStator Generator Stator RM01573
Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 24 mm
Length of wires stator to grommet : 325 mm
Length of wires grommet to plug : 340 mm
Length of pickup coil's wire to grommet : 175 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow Between each Yellow = 0.6 ohms +-20%
Pickup : Blue To Green = 246 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01573
Fitment:
- 2005-2009 Suzuki Boulevard C50 VL1800
- 2011-2017 Suzuki Boulevard C50 VL1800
- 2005-2009 Suzuki Boulevard C50T VL800T
- 2011-2017 Suzuki Boulevard C50T VL800T
- 2019 Suzuki Boulevard C50T VL800T
- 2005-2009 Suzuki Boulevard M50 VZ800
- 2012-2017 Suzuki Boulevard M50 VZ800
Note: Image is for reference only, actual product may vary slightly.
