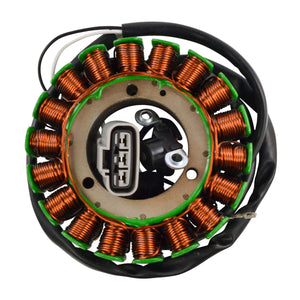

RMStator Generator Stator RM01586

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 58 mm
Exterior diameter : 130 mm
Thickness : 22 mm
Length of wires stator to grommet 1 : 135 mm
Length of wires Between grommet 1 and 2 : 2 mm
Length of wires grommet 2 to alternator plug : 1050 mm
Length of wires grommet 2 to pick-up coil plug : 295 mm
Length of pickup coil's wire to grommet : 75 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :

Alternator : White to White = 0.5 ohms +-20%
Pickup : White to Grey = 296 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01586

Fitment:

• 2009-2016 Yamaha V Star 950 XVS950
• 2009-2017 Yamaha V Star 950 XVS950CT Tourer

Note: Image is for reference only, actual product may vary slightly.
