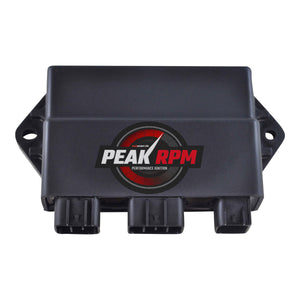

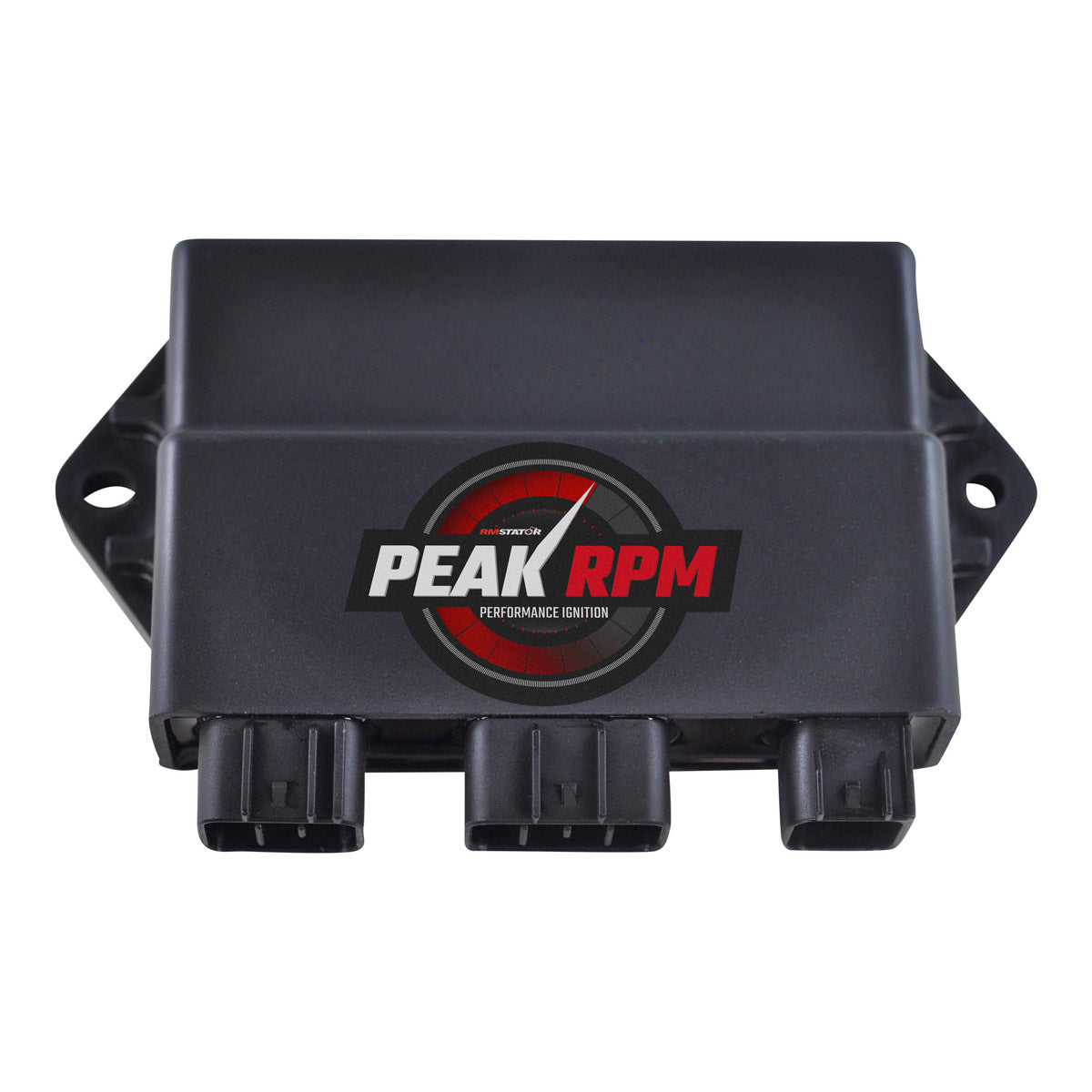

RMStator CDI Box RM02047

Brand new aftermarket CDI box

• Our PeakRPM CDI Box provides the optimal output for your ride
• Enjoy fast & easy installation with our plug & play OEM design and included dielectric connector grease
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Technical Data

Dimensions:
Height: 27mm
Length: 110mm
Width: 92mm
Fixation holes center to center: 120mm

Other specifications:

Number of plugs: 3
Number of pins: 18

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this; we recommend that you rule everything else out before replacing the CDI box..

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM02047

Fitment:

• 2005-2011 Motobishi 500
• 2005-2011 Motobishi 700
• 2005-2011 Nordik Motors 500
• 2005-2011 Nordik Motors 700
• 2005-2011 Powermax 500
• 2005-2011 Powermax 700
• 2005-2009 Rough Rider 700
• 2011-2012 Rough Rider 700
• 2002-2008 Yamaha Grizzly 660 YFM660FA 4x4
• 2006-2009 Yamaha Rhino 450 YXR450FA 4x4
• 2004-2007 Yamaha Rhino 660 YXR660FA 4x4

Note: Image is for reference only, actual product may vary slightly.
