RMStator Stator and High Performance CDI Box Kit RM22420
Customer Ratings
RMStator Stator and High Performance CDI Box Kit RM22420
RMStator Stator and High Performance CDI Box Kit RM22420

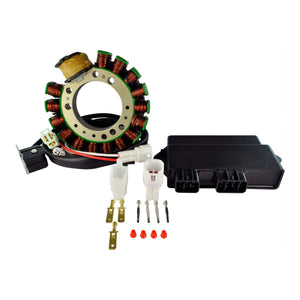

Brand New Kit Stator + PeakRPM CDI Box
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Stator- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components.
- The Quality exceeds the OEM equipment
Technical Data
Stator
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 14mm
Length of wires stator to grommet : 150mm
Length of wires grommet to plug : 420mm
Length of pickup coil's wire to grommet : 300mm
Other specifications :
Number of wires : 7
Number of plugs : 3
Number of pins : 7
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : White to Red = 450 ohms +/-20%
Source : Green to Brown = 320 ohms +/-20%
HP CDI Box
Height: 27mm
Length: 142mm
Width: 95mm
Other specifications:
Number of plugs: 2
Number of pins: 14
The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this; we recommend that you rule everything else out before replacing the CDI box.
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22420
Fitment:
- 1997-2001 Yamaha Warrior 350 YFM350X
- 1997 Yamaha Warrior 350 YFM350X Maine NH
Note: Image is for reference only, actual product may vary slightly.
