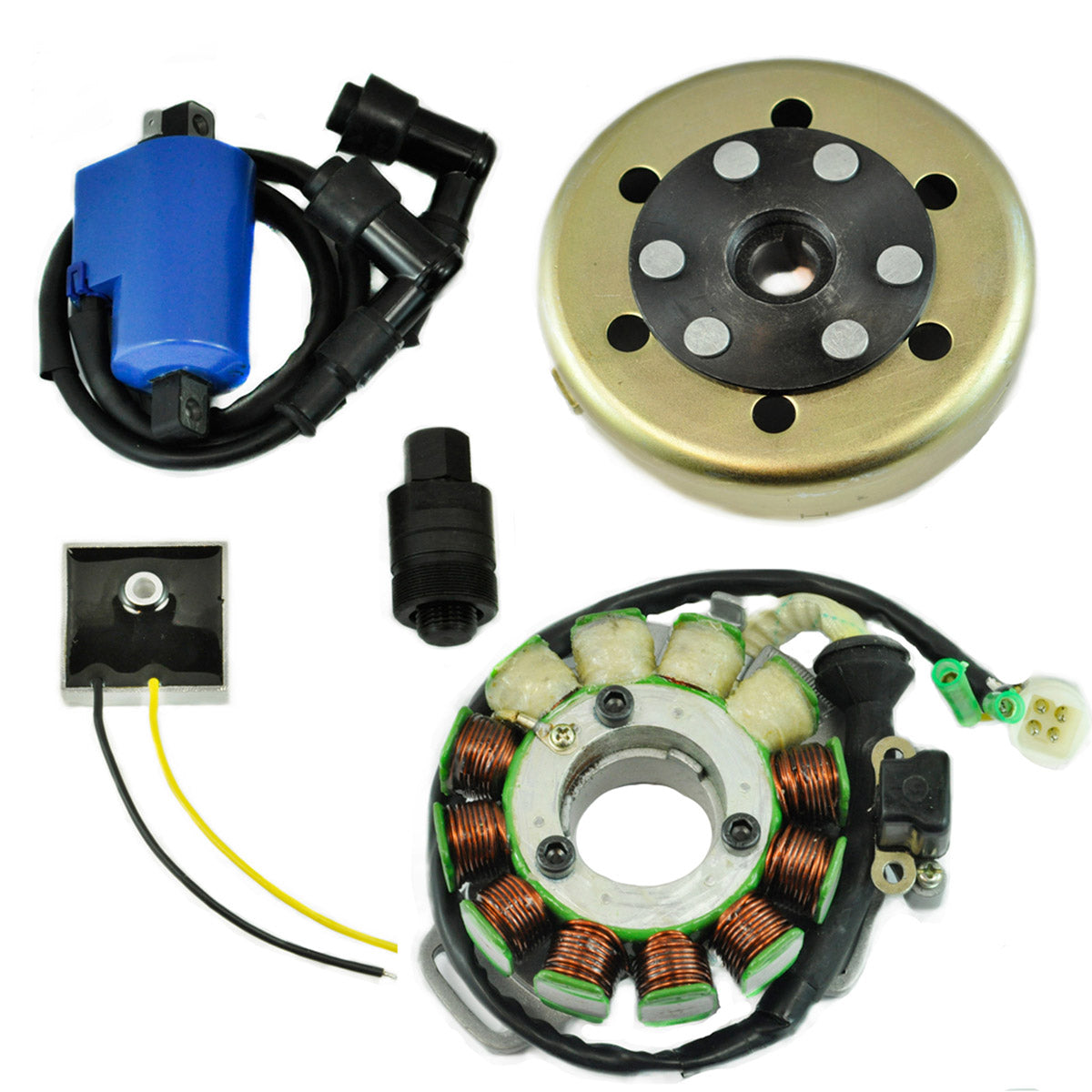

RMStator 200 W Stator And Regulator Rectifier, CDI Box, Ignition Coil and Flywheel Puller Kit

Brand new kit High Output Stator + Voltage Regulator Rectifier + External ignition Coil + Flywheel + Flywheel Puller

• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included

• You must re-install your original connector
• Once your connector is re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Spark plug cap(s) included

Improved Stronger Magneto Flywheel Rotor

RMSTATOR is offering a new replacement flywheel with stronger magnets for your Suzuki and Kawasaki, this flywheel can be used as a direct replacement to the OEM.

We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's.

• 27 MM x 1.0 Left hand male

Technical Data

Stator
Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 14mm
Length of wires stator to grommet : 90mm
Length of wires grommet to plug : 380mm
Length of pickup coil's wire to grommet : 100mm

Other specifications :

Number of wires : 6
Number of plugs : 3
Number of pins :6

Wire to wire resistance :

Alternator : Black to yellow = 0.2 ohms +/-20%
Pickup : White/Red to White/Green = 100 ohms +/-20%
Source : Red to Green = 15 ohms +/-20%

Regulator
Dimensions :
Width : 45mm
Length : 45mm
Height : 20mm
Fixation holes center to center : N/A

Other specifications :
Number of wires : 2
Number of pins : 2

External Ignition Coil
Bracket center to bracket : 90mm
Primary Resistance: 0.4?
Secondary Resistance: 6.0K?
Damped Resistance: 5K
Voltage Transfer Ratio: 150:1
Insulation Resistance: >1000M

Flywheel
Diameter : 130mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM22807

Fitment:

• 1987-1994 Yamaha Banshee 350 YFZ350

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
RM22807
