RMStator 200 W Stator And Regulator Rectifier, Ignition Coil, Flywheel and Flywheel Puller Kit

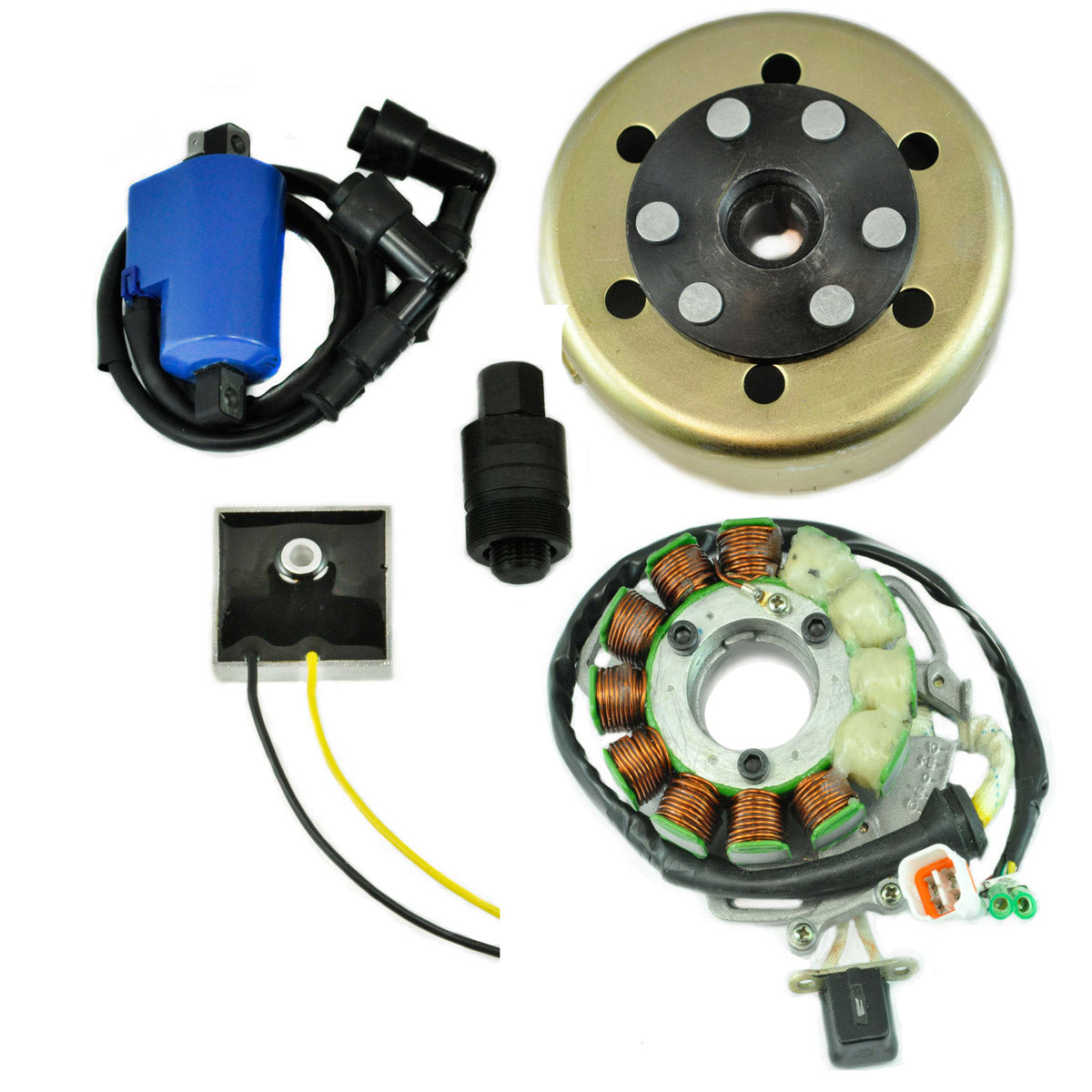

Brand New Kit Stator 200W + AC Regulator + External Ignition Coil + Flywheel + Flywheel Puller

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Brand New High Output Aftermarket Stator 200W :

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included

For a limited time we are including a FREE Tympanum AC regulator required to run the extra wattage supplied from our 200W stator :

• 12 Volts regulator used by Baja winners
• For use with all standard halogen and quartz lights
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Simple installation
• Works with all other OEM parts
• Rated at 225 watts

External Ignition Coil

• Highest grade of lamination materials
• Spark plug cap(s) included

Improved Stronger Magneto Flywheel Rotor
RMSTATOR is offering a new replacement flywheel with stronger magnetsfor your Banshee. This flywheel can be used as a direct replacement to the OEM.
We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's.

Technical Data

Stator Dimensions :
Interior diameter : 103mm
Exterior diameter : 34mm
Thickness : 27mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 520mm
Length of pickup coil's wire to grommet : 80mm

Other specifications :

Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :

Alternator : Yellow to Black = 0.4ohms +/-20%
Pickup : White/Green to White/Red = 115ohms +/-20%
Source : Green to Red = 12ohms +/-20%

Dimensions AC Regulator:
Height: 20 mm
Length: 45 mm
Width: 45 mm

Other specifications:

Number of terminals: 2
Wires length: 130 mm

External Ignition coil
Distance between fixation holes: 90mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM22808

Fitment:

• 1995-2006 Yamaha Banshee 350 YFZ350

Note: Image is for reference only, actual product may vary slightly.
