RMStator Stator Ignition CDI Box Coil Kit RM22812
RMStator Stator Ignition CDI Box Coil Kit RM22812

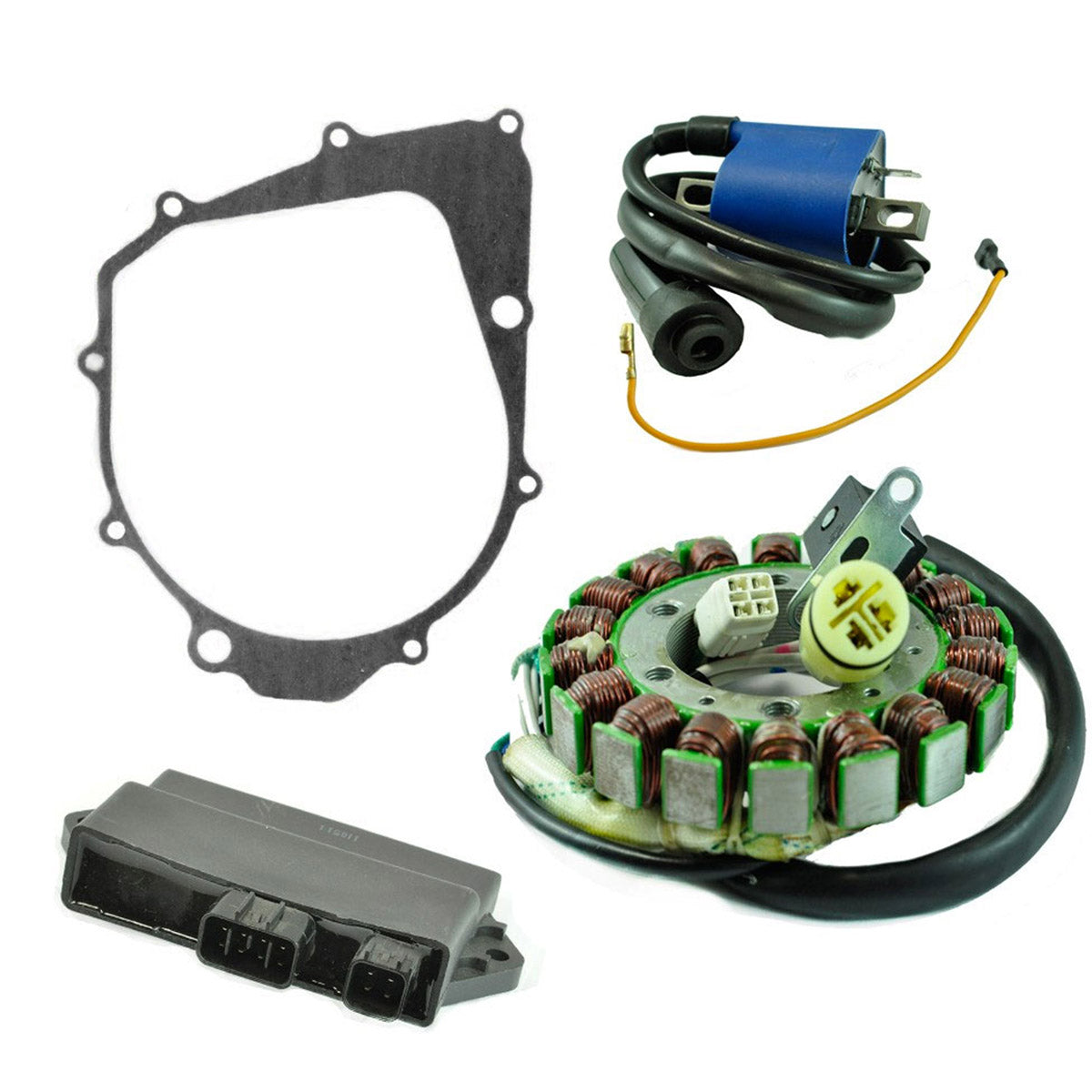

Brand New Kit Stator + PeakRPM CDI Box + External Ignition Coil + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Crankcase cover gasket included
PeakRPM CDI Box
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- The Quality exceeds the OEM equipment
- Highest grade of lamination materials
- The Quality exceeds the OEM equipment
- Spark plug cap(s) included
If your old parts are defective, RM Stator offer replacements parts of high qualities at a fraction of the cost of genuine parts.
Technical Data
Stator
Interior diameter: 53 mm
Exterior diameter: 114 mm
Thickness: 13 mm
Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7
Wire to wire resistance:
Alternator : White between each White = 0.4 ohms+/-20%
Pickup: Green to Blue = 518 ohms =+/-20%
Position sensor: Red to White/Blue = 0.1 ohms+/-20%
Height: 26 mm
Length: 109 mm
Width: 78 mm
Wires length: 120 mm
Other specifications:
Number of plugs: 2
Number of pins: 12
The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this; we recommend that you rule everything else out before replacing the CDI box
External ignition coil
Distance between fixation holes: 55 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22812
Fitment:
- 2004-2013 Yamaha Raptor 350 YFM350R
- 2005-2007 Yamaha Raptor 350 YFM350RSE Special Edition
- 2002-2004 Yamaha Warrior 350 YFM350X
Note: Image is for reference only, actual product may vary slightly.
