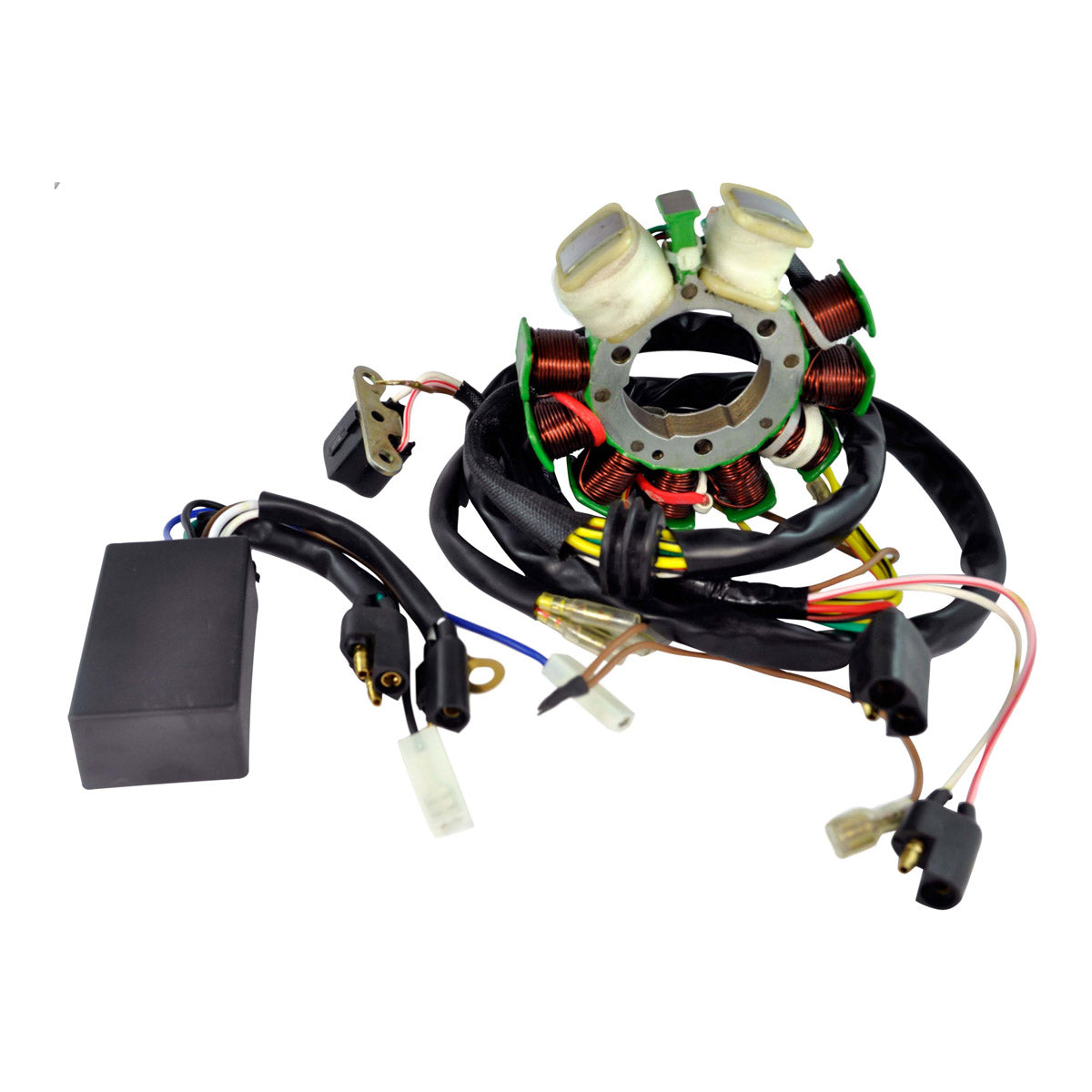

RMStator Stator and CDI Box Kit RM22816
Customer Ratings
RMStator Stator and CDI Box Kit RM22816
RMStator Stator and CDI Box Kit RM22816
Brand new kit Stator + PeakRPM CDI Box
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- The Quality exceeds the OEM equipment
Note: The OEM 3086982 has 2 possibles CDI's for some Polaris models, please compare your original part with our product before purchasing
Technical Data
Stator
Interior diameter : 42mm
Exterior diameter : 105mm
Thickness : 32mm
Length of wires stator to grommet : 140mm
Length of wires grommet to plug : 1000mm
Length of pickup coil's wire to grommet : 70mm
Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 12
Wire to wire resistance :
Alternator : Yellow to Yellow/Red = 0.4ohms +/-20%
Pickup : White/Red to White = 115ohms +/-20%
Source : Black/Red to Green = 450ohms +/-20%
Source 2 : Red to Green = 4.1ohms +/-20%
CDI Box
Height: 70 mm
Length: 23 mm
Width: 38 mm
Other specifications:
Number of plugs: 5
Number of pins: 8
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22816
Fitment:
- 1995-1998 Polaris Magnum 425 2x4
- 1995-1998 Polaris Magnum 425 4X4
- 1996-1997 Polaris Magnum 425 6x6
- 2004 Polaris Ranger 500 Series 11
- 1999-2000 Polaris Sportsman 335
- 2001-2002 Polaris Sportsman 400
- 1996-1997 Polaris Sportsman 500 4X4
- 1999 Polaris Worker 335
- 1997 Polaris Xplorer 500 4X4
Note: Image is for reference only, actual product may vary slightly.
