RMStator Stator Kit With Ignition Coil RM22842

RMStator Stator Kit With Ignition Coil RM22842

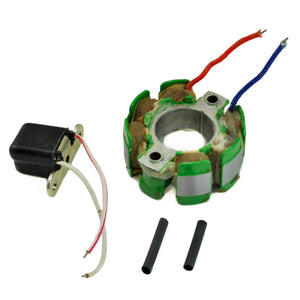

Brand new Stator + Pick-Up Coil Kit

• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• You must re-install your original connector and grommet (see picture)
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install
• Higher grade of electric components
• Highest grade of copper winding, resistant to 200 degrees Celsius

• We offer a brand new pickup/pulsar coil for you to repair your stator
• Often unavailable from the OEM manufacturer

Technical Data

Stator
Dimensions :
Interior diameter : 28mm
Exterior diameter : 58mm
Thickness : 16mm
Length of wires Stator to terminal : 75mm

Other specifications :

Number of wires : 2
Number of plugs : N/A
Number of pins : 1

Wire to wire resistance :

Source : Blue to Red = 107 ohms +/-20%

Pick up coil
Dimensions :
Height : 25mm
Length : 18mm
Width : 22mm
Fixation holes center to center : 35mmWire length : 90mm

Wire to wire resistance :

Pink/Red to White = 100 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM22842

Fitment:

• 1984-1985 Honda CR125R
• 1984-1985 Honda CR250R
• 1984-1986 Honda CR500R
• 1989-1993 Suzuki RM125

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
31100-KA5-761,31120-KA3-741,31120-KA3-742,31120-KA3-761,31120-KA4-741,31120-KA4-761,31120-KA5-741,32101-27C00,32101-27C01,32101-27C10,32101-43D00
