RMStator Stator Pickup Pulsar Coil Kit RM22843

RMStator Stator Pickup Pulsar Coil Kit RM22843

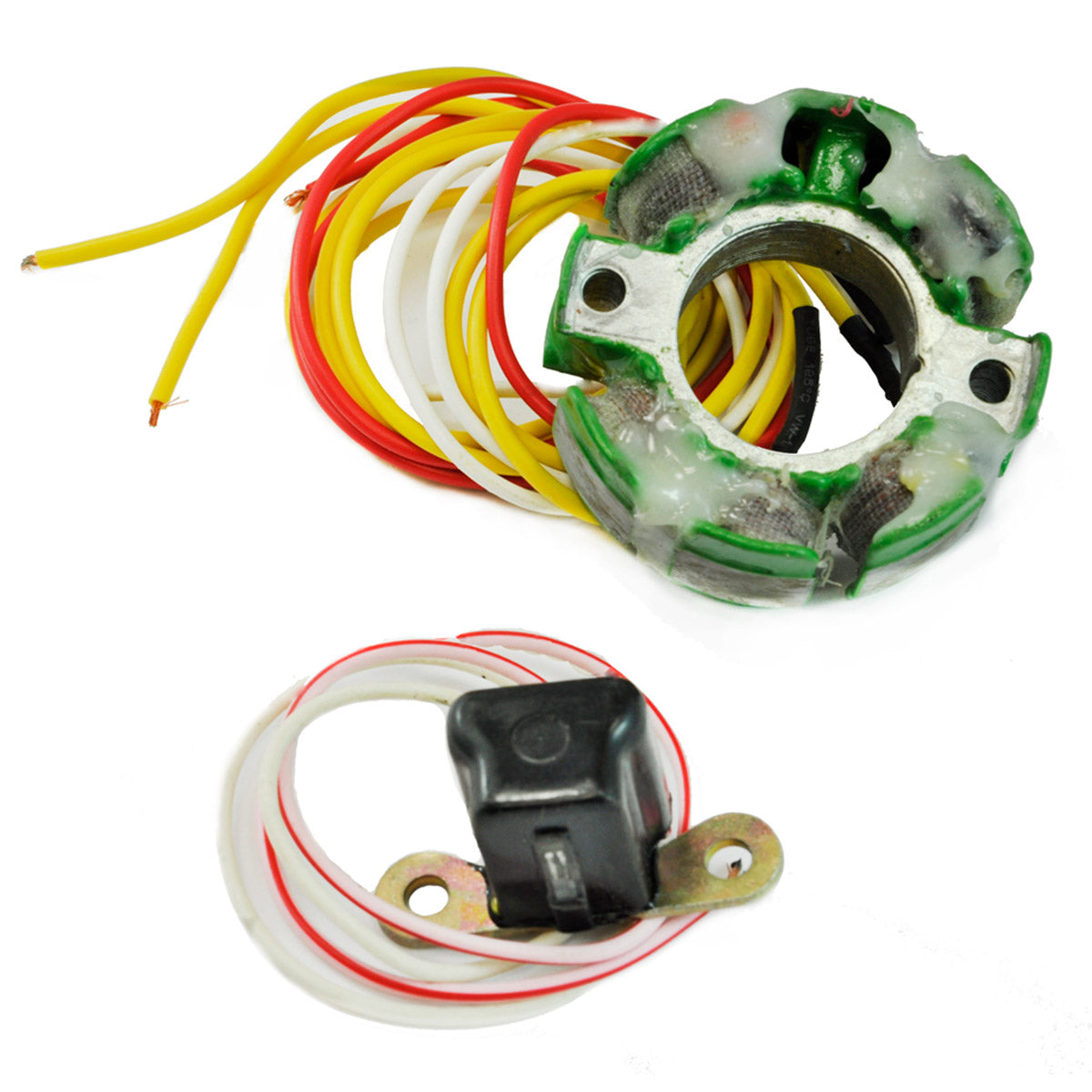

Brand New Kit Stator + Pickup Pulsar Coil

• You must re-install your original connector and grommet (see picture)
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install
• Pickup pulsar coil included (separate)
• Higher grade of electric components
• Highest grade of copper winding, resistant to 200 degrees Celsius
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Stator Dimensions :
Interior diameter: 28mm
Exterior diameter: 57mm
Thickness: 15mm
Length of wires stator to terminals: 600mm

Other specifications:
Number of wires: 4
Number of plugs: 0
Number of terminals: 4

Wire to wire resistance:
Source 1 : Red to White = 28 ohms +/-20%
Source 2 : Yellow to Yellow = 0.4 ohms +/- 20%

Dimensions Pickup Pulsar Coil:
Height: 25mm
Length: 22mm
Width: 18mm
Bracket center to center: 35mm
Wires length : 90mm

Other specifications:
Number of wires : 2
Number of pins: 2

Wire to wire resistance:
Pink/Red to White = 100ohms+/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM22843

Fitment:

• 1994-2001 Suzuki RM125
• 1996-2001 Suzuki RM250

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
RM22843-R00
