RMStator Stator Kit With HP CDI Box , Ignition Coil And Flywheel RM22848

RMStator Stator Kit With HP CDI Box , Ignition Coil And Flywheel RM22848

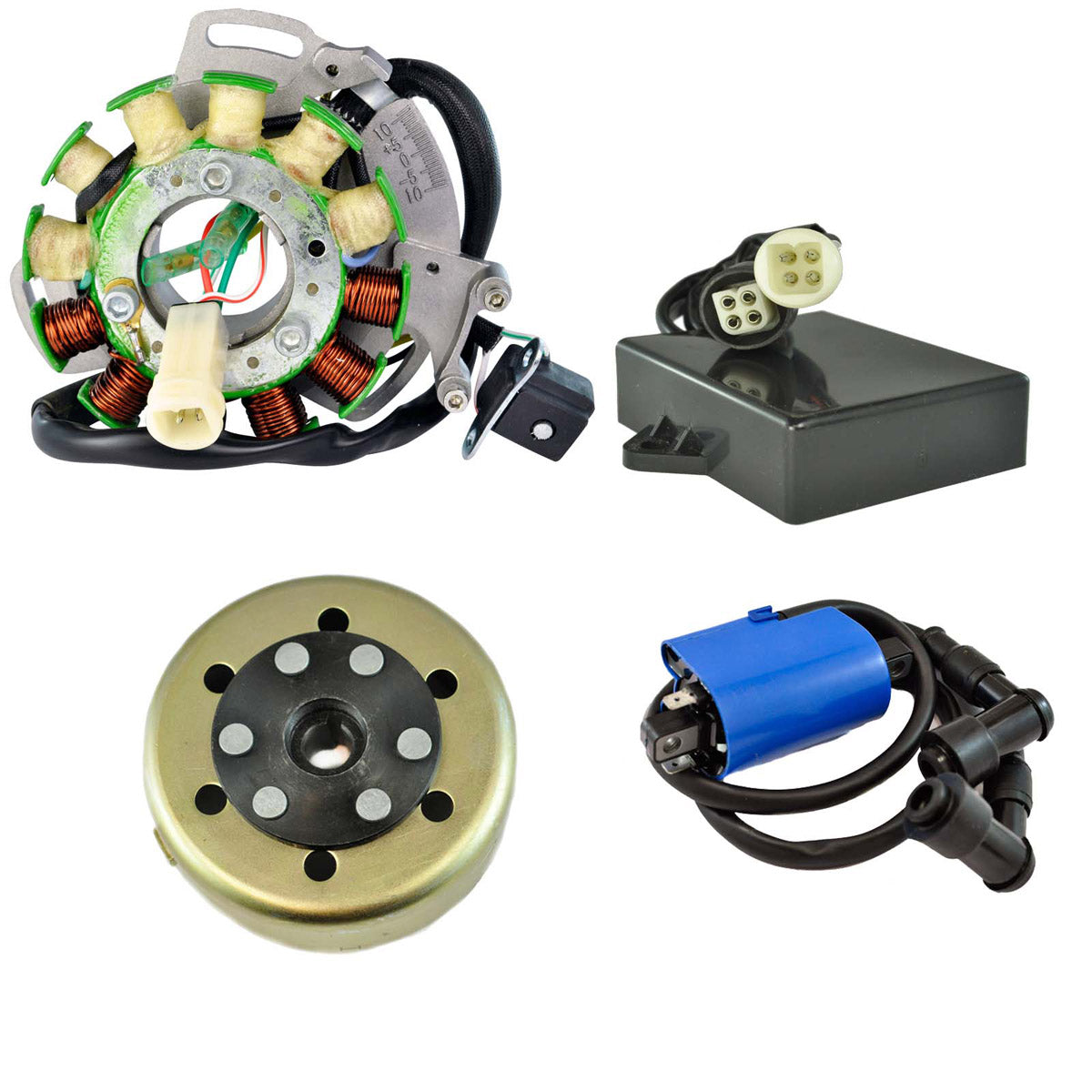

Brand new Stator + PeakRPM CDI Box + External Ignition Coil + Flywheel Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested
• All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included

PeakRPMCDI Box

• Our part is a Plug-and-play unit, direct fit, and easy to install
• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

External Ignition Coil

• Highest grade of lamination materials
• Spark plug cap(s) included

Flywheel

RMSTATOR is offering a new replacement flywheel with stronger magnetsfor your Suzuki and Kawasaki, this flywheel can be used as a direct replacement to the OEM.

We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's.

Technical Data

Stator
Dimensions :
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 5 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 310 mm
Length of pickup coil's wire to grommet : 90 mm

Other specifications :

Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :

Alternator : Black to Yellow = 0.2 ohms +/-20%
Pickup : Whit/Red to White/Green = 125 ohms +/-20%
Source : Green to Red = 22 ohms +/-20%

CDI Box
Dimensions:
Height : 25 mm
Length : 85 mm
Width : 71 mm
Fixation holes center to center: 85 mm
Wires length: 120 mm 140 mm

Other specifications:
Number of plugs : 2
Number of pins: 8

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this; we recommend that you rule everything else out before replacing the CDI box.

Flywheel
Dimensions :
Exterior Diameter: 128 mm
Interior diameter : 105 mm
Interior Diameter Center Housing: 21 mm
Exterior Diameter Center Housing: 34 mm
Thickness (exterior) : 12 mm
Thickness (interior): 7 mm

External Ignition Coil
Bracket center to bracket:: 90 mm
Wires length: 590 mm
Primary Resistance: 0.4 ?
Secondary Resistance: 6.0 K ?
Spark plug cap Resistance: 5 K
Voltage Transfer Ratio: 150:1
Insulation Resistance: >1000 M

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM22848

Fitment:

• 1987-1994 Yamaha Banshee 350 YFZ350

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
RM22848
