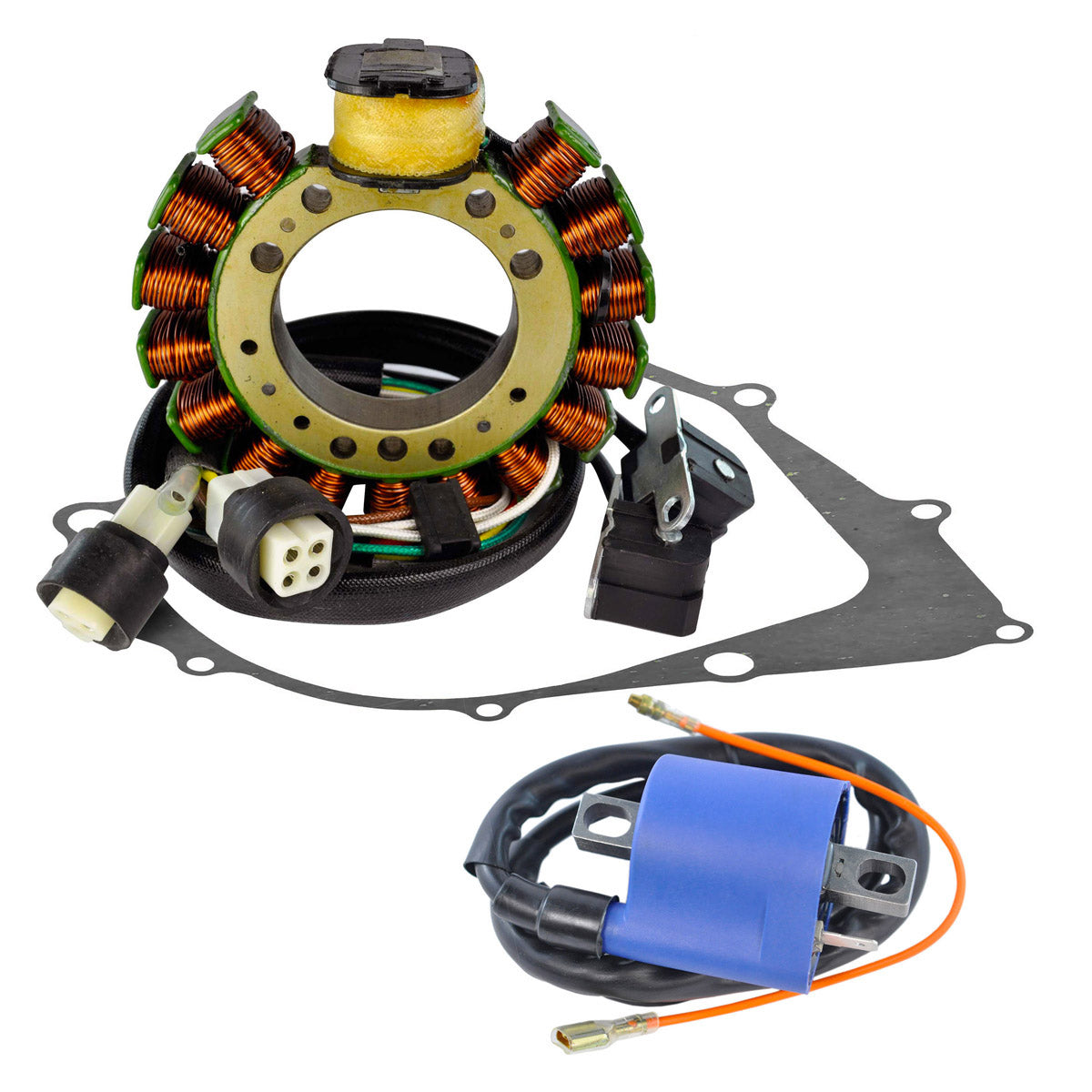

RMStator Stator Kit With External Ignition Coil, and Crankcase Cover Gasket

Brand new Stator + External ignition coil + Crankcase Cover Gasket Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

If your old parts are defective, RM Stator offer replacements parts of high qualities at a fraction of the cost of genuine parts.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Crankcase cover gasket included

• You must re-install your OEM spark plug cap(s)
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
• Highest grade of lamination materials

Technical Data

Stator
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires stator to grommet: 200mm
Length of wires grommet to plug: 475mm
Length of wires pickup coil's wire to grommet: 220mm

Other specifications:
Number of wires : 9
Number of plugs: 4
Number of terminals : 9

Wire to wire resistance:
Alternator : White between each White = 0.4 ohms+/-20%
Pick up : Red to Blue = 221 ohms+/-20%
Pick up :Yellow to White = 217 ohms+/-20%
Source : Brown to Green = 315 ohms+/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM22864

Fitment:

• 1987 Yamaha Big Bear 350 YFM350FW 4x4
• 1989 Yamaha Big Bear 350 YFM350FW 4x4
• 1987-1989 Yamaha Warrior 350 YFM350X

Note: Image is for reference only, actual product may vary slightly.
