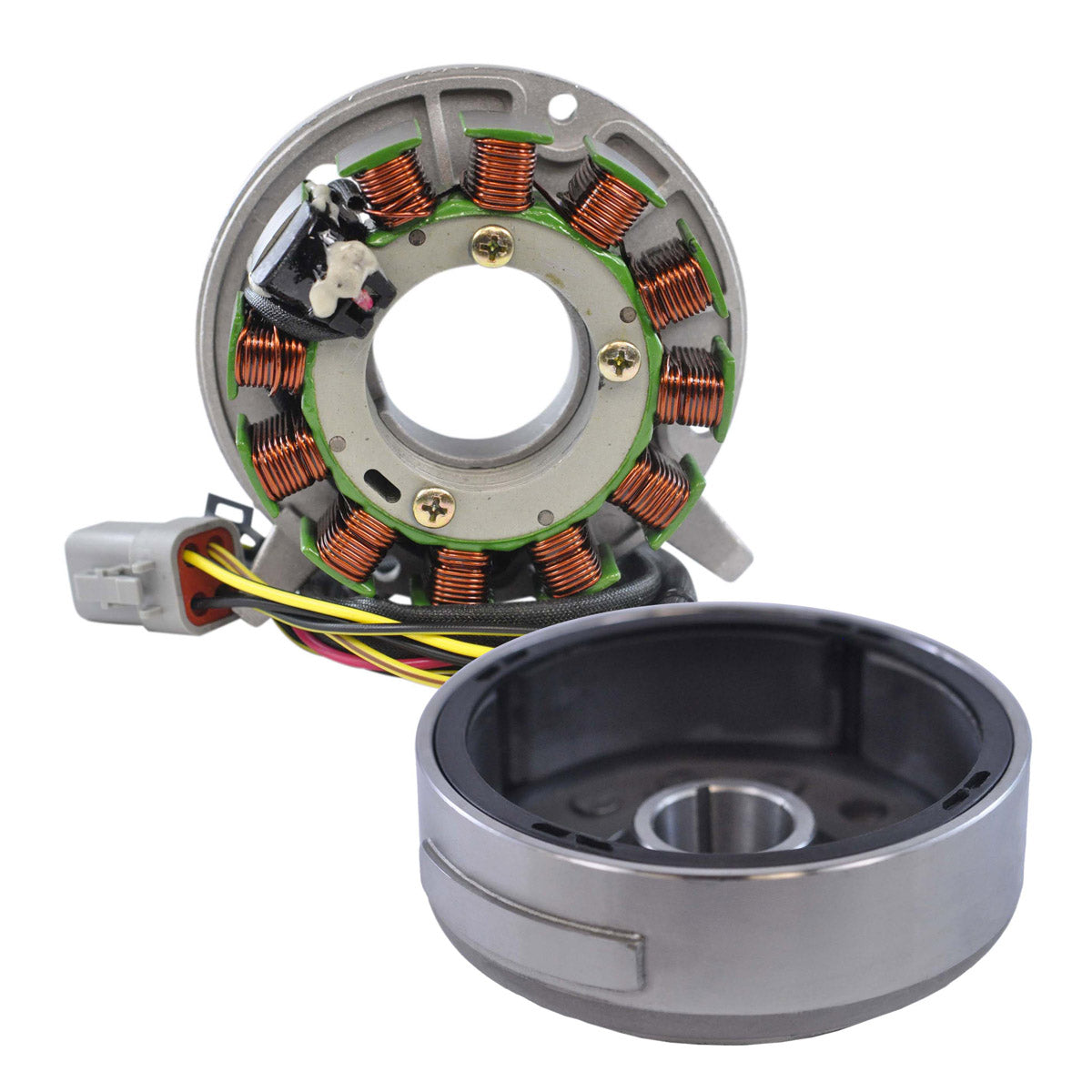

RMStator Stator and Magneto Flywheel Kit RM22869

Brand New Magneto Flywheel + Stator Kit

• All products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Technical Data

Stator

Dimensions :
Interior diameter : 43 mm
Exterior diameter : 110 mm
Thickness : 32 mm
Length of wires stator to grommet : 500mm

Other specifications :

Number of wires : 6
Number of plugs : 2
Number of pins : 6

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Alternator : Yellow to Ground = 0.LSource : Red to Black = 80 ohms +/-20%

Flywheel

Dimensions:
Exterior Diameter: 117 mm
Interior Diameter: 96 mm
Interior Diameter Center Housing: 24 mm
Exterior Diameter Center Housing: 35 mm
Thickness (exterior): 46 mm
Thickness (interior): 23 mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM22869

Fitment:

• 1998 Ski-doo Tundra II 280 Carb F/C
• 1998-2000 Ski-doo Tundra R 280 Carb F/C
• 2002-2005 Ski-doo Tundra R 280 Carb F/C

Note: Image is for reference only, actual product may vary slightly.
