RMStator Voltage Regulator Rectifier RM30010

Brand new voltage regulator rectifier

Please note : There is two possible regulators for the VS 1400 GL Intruder model depending on the year of the vehicule. This regulator fits on 1996-2004 VS 1400 GL Intruder.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components.
• All products shipped are tested

*All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Technical Data

Dimensions :
Width : 50mm
Length : 145mm
Height: 25mm
Wires length : 440mm

Other specifications :
Number of plugs : 1
Number of pins : 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM30010

Fitment:

• 2005-2009 Suzuki Boulevard S50 VS800
• 2005-2009 Suzuki Boulevard S83
• 1992-1993 Suzuki DR650S
• 1994-1995 Suzuki DR650SE
• 1996-2004 Suzuki Intruder 1400 VS1400GLP
• 1992-2004 Suzuki Intruder 800 VS800GL

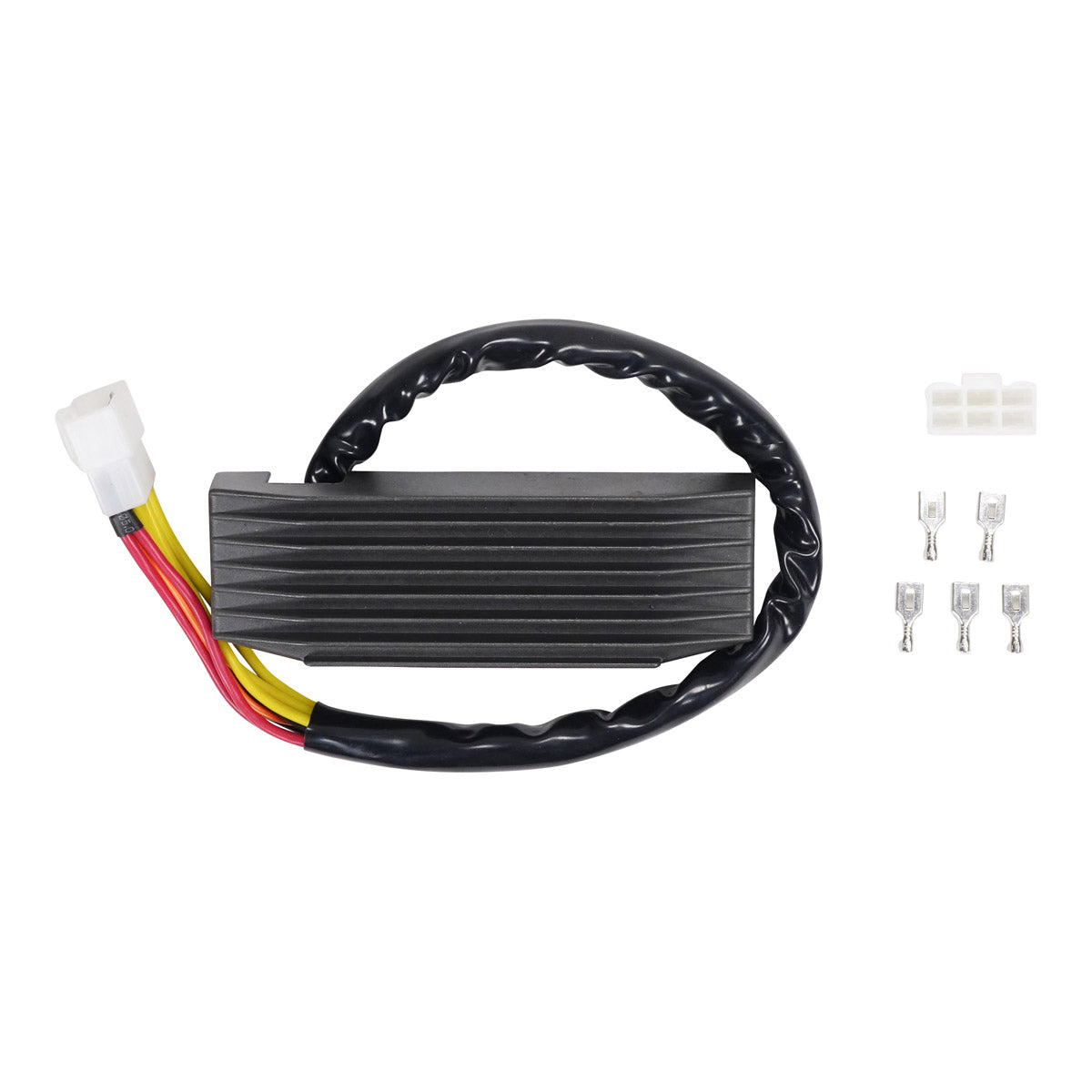

Note: Image is for reference only, actual product may vary slightly.
