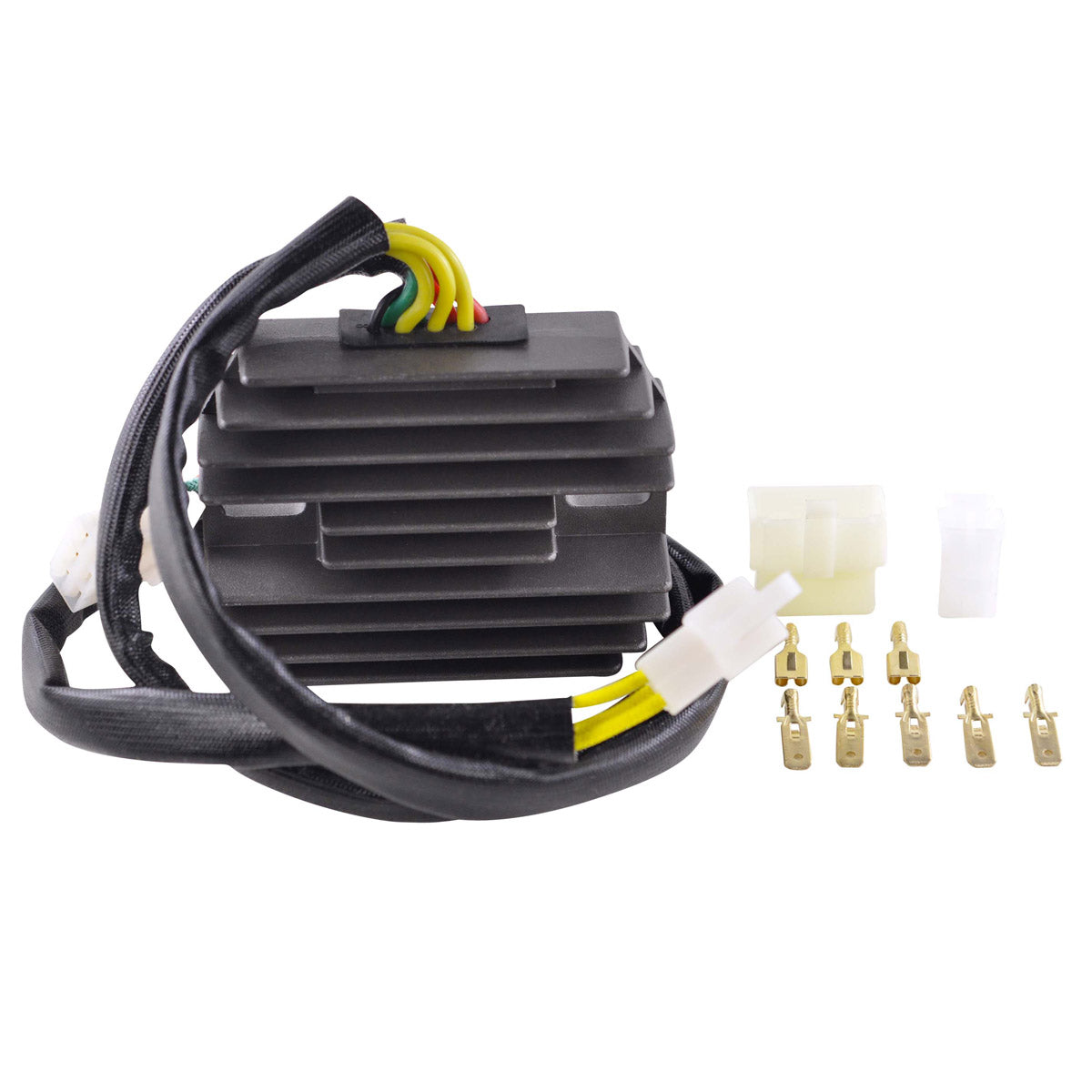

RMStator Voltage Regulator Rectifier RM30102

Brand new voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components.
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

*All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Technical Data

Dimensions :
Width : 80mm
Length : 108mm
Height: 28mm
Fixation holes center to center : 75mm
Wires length: 700mm and 480mm

Other specifications :
Number of plugs : 2
Number of pins : 8
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM30102

Fitment:

• 1985-1986 Honda Magna 700 VF700C
• 1986-1987 Honda Shadow 700 VT700C
• 1988 Honda Shadow 800 VT800

Note: Image is for reference only, actual product may vary slightly.
