RMStator Generator Stator RMS010-101433
Customer Ratings
RMStator Generator Stator RMS010-101433
RMStator Generator Stator RMS010-101433
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Fits Mitsuba charging systems
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 125 mm
Thickness : 25 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 50 mm
Length of pickup coil's wire to grommet : 35 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +-20%
Pickup : Yellow to White = 120 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-101433
Fitment:
- 2013-2018 Honda CB500F
- 2013-2018 Honda CB500X
- 2013-2018 Honda CBR500R

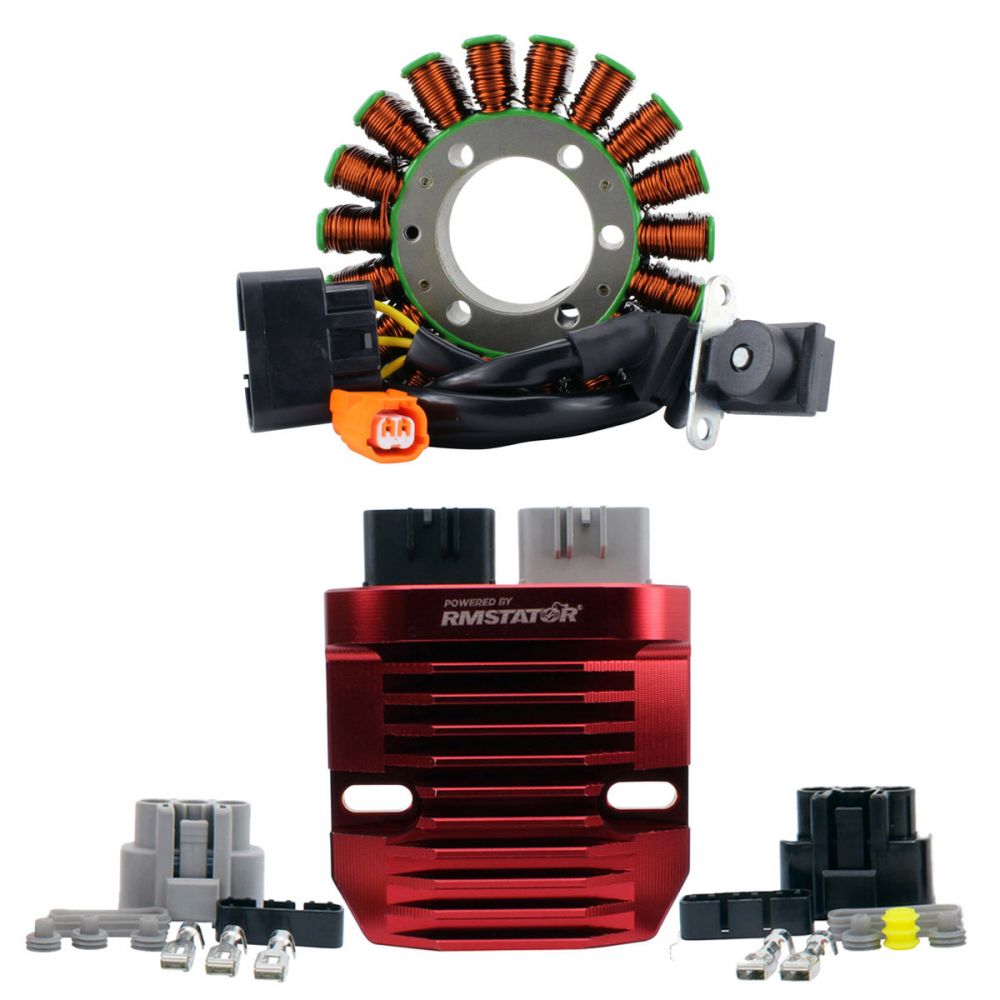

Note: Image is for reference only, actual product may vary slightly.
