RMStator Stator RMS010-104039

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 18 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 650 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator :White to white = 0.4 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-104039

Fitment:

• 1996-1999 Honda CBR 919 RR
• 1996-1999 Honda CBR900RR

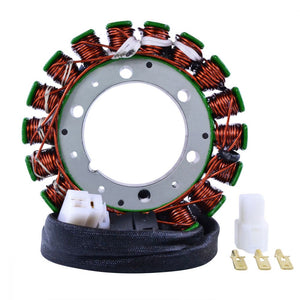

Note: Image is for reference only, actual product may vary slightly.
