RMStator Stator RMS010-104105

Brand new aftermarket Generator Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 29 mm
Exterior diameter : 83 mm
Thickness : 13 mm
Length of wires stator to grommet : 60 mm
Length of wires grommet to plug : 490 mm

Other specifications :

Number of wires : 4
Number of plugs : 3
Number of pins : 4

Wire to wire resistance :

Alternator :White to Yellow = 0.5 ohms +-20%
Source: Black/Red to Red/White = 30 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-104105

Fitment:

• 2003-2006 KTM 250 EXC
• 2003-2005 KTM 250 EXC G
• 2007 KTM 250 EXC F
• 2002 KTM 250 SX
• 2007-2008 KTM 250 XC-F
• 2009-2011 KTM 250 XCF-W
• 2005-2006 KTM 400 EXC
• 1999-2002 KTM 400 SD Enduro
• 2004 KTM 400 SD Enduro
• 2007 KTM 400 XCW
• 2009-2010 KTM 400 XCW
• 2005-2007 KTM 450 EXC
• 2009-2011 KTM 450 EXC
• 2005-2006 KTM 450 EXC-G Racing
• 2008 KTM 450 EXC-R
• 2005 KTM 450 MXC G
• 2003-2004 KTM 450 SX Racing
• 2008 KTM 450 XCR-W
• 2007 KTM 450 XCW
• 2010-2011 KTM 450 XCW
• 1999-2002 KTM 520 EXC Racing
• 2001-2002 KTM 520 SX
• 2005-2007 KTM 525 EXC
• 2005 KTM 525 MXC
• 2003-2004 KTM 525 MXC Racing
• 2007 KTM 525 XC
• 2009-2011 KTM 530 EXC
• 2008 KTM 530 EXC-R
• 2008 KTM 530 XCR-W
• 2009-2011 KTM 530 XCW

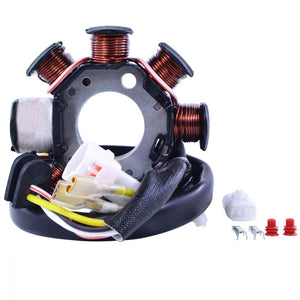

Note: Image is for reference only, actual product may vary slightly.
