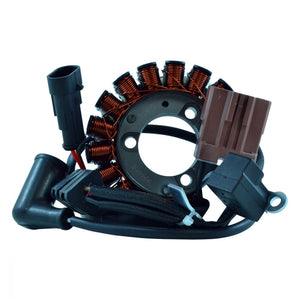

RMStator Generator Stator RMS010-104193

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 36 mm
Exterior diameter : 95 mm
Thickness : 32 mm
Length of wires stator to grommet : 165 mm
Length of wires grommet to plug : 585 mm / 780 mm
Length of pickup coil's wire to grommet : 88 mm

Other specifications :

Number of wires : 6
Number of plugs : 3
Number of pins : 6
Number of poles : 18

Wire to wire resistance :

Alternator :Yellow between each Yellow = 0.4 ohms +-20%
Pickup : Green/White to Yellow/White = 125 ohms +-20%
Source : Black/Red to Ground = 210 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-104193

Fitment:

• 2006-2008 Aprilia Atlantic 125
• 2006-2008 Aprilia Atlantic 250
• 2010-2012 Aprilia Atlantic 300
• 2006-2008 Aprilia Scarabeo 250 Light
• 2009-2010 Aprilia Scarabeo 300 Light
• 2004-2008 Aprilia Sportcity 125
• 2006-2008 Aprilia Sportcity 200
• 2008-2012 Aprilia Sportcity 250
• 2008-2012 Aprilia Sportcity 300
• 2011-2013 Aprilia SR 125 Max
• 2011-2012 Aprilia SR 300 Max
• 2006-2007 Derbi GP1 125
• 2007-2011 Derbi Rambla 125
• 2007-2011 Derbi Rambla 250
• 2008-2011 Derbi Rambla 300
• 2007-2009 Gilera Nexus 125
• 2006-2007 Gilera Nexus 250
• 2008-2011 Gilera Nexus 300
• 2003-2005 Gilera Nexus 500
• 2006-2012 Malaguti Madison 3 250
• 2010-2015 Piaggio Beverly 125
• 2009-2017 Piaggio Beverly 300
• 2006-2009 Piaggio BV 250
• 2007-2008 Piaggio BV 500
• 2008 Piaggio Carnaby 250
• 2009-2011 Piaggio Carnaby 300
• 2006-2010 Piaggio MP3 250
• 2010-2017 Piaggio MP3 300ie Yourban
• 2006-2013 Piaggio MP3 125
• 2012-2013 Piaggio X10 125
• 2008-2009 Piaggio X7 125
• 2008 Piaggio X7 250
• 2009 Piaggio X7 300
• 2005-2008 Piaggio X8 250
• 2007-2016 Piaggio X-Evo 250
• 2007-2015 Vespa GTS 125 Super
• 2005-2016 Vespa GTS250
• 2008-2015 Vespa GTS300 IE
• 2017 Vespa GTS300 IE
• 2008-2015 Vespa GTS300 IE Super
• 2008-2015 Vespa GTS300 IE Super Sport SE
• 2006-2010 Vespa GTV250
• 2009-2015 Vespa GTV300 IE

Note: Image is for reference only, actual product may vary slightly.
