RMStator Stator RMS010-104197
Customer Ratings
RMStator Stator RMS010-104197
RMStator Stator RMS010-104197

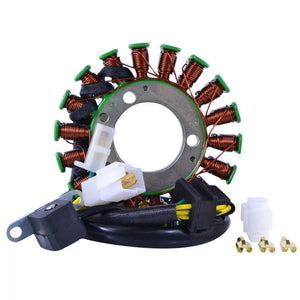

Brand new aftermarket Generator Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 102 mm
Thickness : 14 mm
Length of wires stator to grommet : 260 mm
Length of wires grommet to plug : 430 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator 3p : Between each Yellow = 0.4 ohms +-20%
Pickup : Green to Blue/White = 200 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-104197
Fitment:
- 1982-1983 Suzuki GN250
- 1985-2001 Suzuki GN250
- 1997-2009 Suzuki TU250
- 2011-2013 Suzuki TU250
- 2015-2016 Suzuki TU250
Note: Image is for reference only, actual product may vary slightly.
