RMStator Generator Stator RMS010-104205

RMStator Generator Stator RMS010-104205

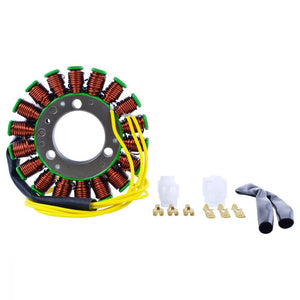

Brand new aftermarket Generator Stator

• Direct replacement to your original unit
• You must re-install your original grommet (see picture).
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connector included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 38 mm
Exterior diameter : 102 mm
Thickness : 14 mm
Length of wires grommet to plug : 480 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Wire to wire resistance :

Alternator 3p : Between each Yellow = 0.06 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-104205

Fitment:

• 1999-2000 Kawasaki ER 500
• 1991-1999 Kawasaki KLE 400
• 1991-2007 Kawasaki KLE 500
• 1994-1995 Kawasaki Ninja 400 EX400
• 1987-1996 Kawasaki Ninja 500 EX500A
• 1997-2009 Kawasaki Ninja 500R EX500D
• 1985-1990 Kawasaki Vulcan 454 EN450
• 1990-2009 Kawasaki Vulcan 500 EN500A

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
21003-1123,21003-1267
