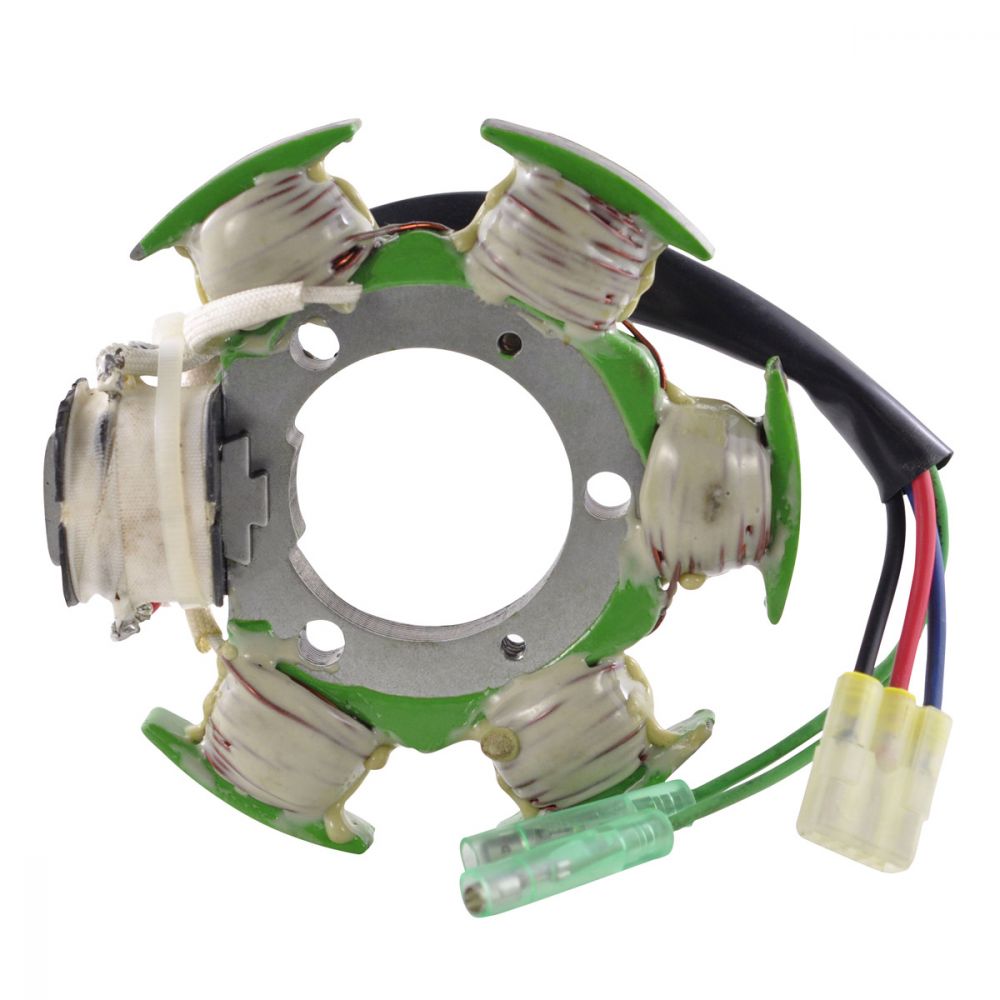

RMStator Stator RMS010-104906

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 19 mm
Exterior diameter : 83 mm
Thickness : 10 mm
Length of wires stator to grommet : 45 mm
Length of wires grommet to plug : 155 mm
Length of pickup coil's wire to grommet : 60 mm

Other specifications :

Number of wires : 8
Number of plugs : 4
Number of pins : 9

Wire to wire resistance :

Alternator : Yellow/Red to White = 0.4 ohms +-20%
Pickup : Green/White to White/Red = 338 ohms +-20%
Source : Black/Red to White/Red = 433 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-104906

Fitment:

• 1985-1988 Yamaha Badger 80 YFM80
• 1987-1988 Yamaha Champ 100 YFM100
• 1986-1988 Yamaha Moto 4 YFM80

Note: Image is for reference only, actual product may vary slightly.
