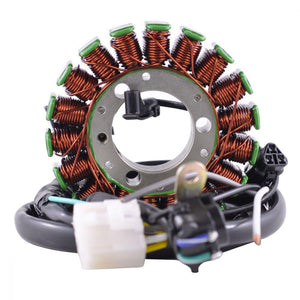

RMStator Stator RMS010-104947

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 19 mm
Exterior diameter : 110 mm
Thickness : 33 mm
Length of wires stator to grommet : 50 mm
Length of wires grommet to plug : 160 mm
Length of pickup coil's wire to grommet : 40 mm

Other specifications :

Number of wires : 8
Number of plugs : 5
Number of pins : 10

Wire to wire resistance :

Alternator : Yellow/Red to White = 0.7 ohms +-20%
Pickup : White/Blue to White/Red = 339 ohms +-20%
Source : Green/White to Black/Red = 401 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-104947

Fitment:

• 1992-1994 Yamaha Badger 80 YFM80
• 1989-1991 Yamaha Champ 100 YFM100

Note: Image is for reference only, actual product may vary slightly.
