RMStator Stator RMS010-105040
Customer Ratings
RMStator Stator RMS010-105040
RMStator Stator RMS010-105040
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 34 mm
Length of wires stator to grommet : 190 mm
Length of wires grommet to plug : 850 mm
Length of pickup coil's wire to grommet : 120 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +-20%
Pickup : Black to Grey = 500 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-105040
Fitment:
- 2017-2022 Yamaha 1000 Sidewinder EFI L/C
- 2020 Yamaha Sidewinder BTX LE 153in 1000 EFI L/C

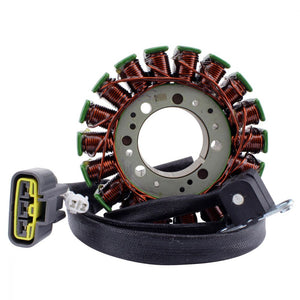

Note: Image is for reference only, actual product may vary slightly.
