RMStator Stator RMS010-106022
Customer Ratings
RMStator Stator RMS010-106022
RMStator Stator RMS010-106022
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Connectors included
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 40 mm
Exterior diameter : 103 mm
Thickness : 30 mm
Length of wires : 350 & 380 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Number of poles : 12
Wire to wire resistance :
Alternator : Between each Yellow = 0.2 ohms +-20%
Source #1: Black/Red to Red = 30 ohms +-20%
Source #2: Black/Red to White = 5 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-106022
Fitment:
- 2004 Lynx Racing
- 2005 Lynx Rave 440
- 2003 Ski-doo MXZ X 440 Carb L/C
- 2004-2005 Ski-doo MXZ X 440 Racing Carb L/C

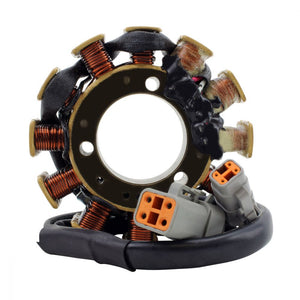

Note: Image is for reference only, actual product may vary slightly.
