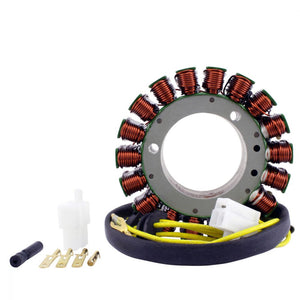

RMStator Stator RMS010-106243

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 50 mm
Exterior diameter : 110 mm
Thickness : 35 mm
Length of wires stator to grommet : 190 mm
Length of wires grommet to plug : 530 mm
Number of wires : 5
Number of plugs : 3
Number of pins : 5
Number of poles :18

Wire to wire resistance:
Alternator : Between each Yellow = 0.4 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-106243

Fitment:

• 1983 Yamaha Midnight Virago 750 XV750M
• 1983 Yamaha Midnight Virago 920 XV920M
• 1981-1982 Yamaha Seca 920 XV920R
• 1984-1985 Yamaha Virago 1000 XV1000
• 1984-1985 Yamaha Virago 700 XV700
• 1981-1983 Yamaha Virago 750 XV750
• 1982-1983 Yamaha Virago 920 XV920

Note: Image is for reference only, actual product may vary slightly.
