RMStator Stator RMS010-106640

Brand new aftermarket Stator

• Direct replacement to your original unit
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 74 mm
Exterior diameter : 148 mm
Thickness : 20 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 440 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Wire to wire resistance :

Alternator : Orange to Brown = 0.6 ohms +/-20%
Alternator : Yellow to Orange = 0.6 ohms +/-20%
Alternator : Brown to Yellow = 0.6 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-106640

Fitment:

• 2019-2022 Ski-doo Backcountry 600R E-TEC
• 2019-2022 Ski-doo Backcountry 850 E-TEC
• 2020-2022 Ski-doo Expedition 600 LE HO E-TEC
• 2020-2022 Ski-doo Expedition 600 SE HO E-TEC
• 2021-2022 Ski-doo Expedition 600 Sport EFI L/C
• 2020-2022 Ski-doo Expedition 850 Xtreme E-TEC EFI L/C
• 2018-2022 Ski-doo Freeride 850 E-TEC 137in
• 2019-2021 Ski-doo Grand Touring 600R Limited E-TEC L/C
• 2019-2022 Ski-doo MXZ 600R E-TEC
• 2019-2022 Ski-doo MXZ 600RS EFI L/C
• 2017 Ski-doo MXZ 850 TNT E-TEC
• 2020-2022 Ski-doo MXZ 850 TNT E-TEC
• 2018 Ski-doo MXZ X 600R E-TEC EFI L/C
• 2017-2019 Ski-doo MXZ X 850 E-TEC
• 2020 Ski-doo MXZ X 850 E-TEC EFI L/C
• 2018 Ski-doo MXZ XRS 600 HO E-TEC EFI L/C
• 2018 Ski-doo MXZ XRS 850 E-TEC EFI L/C
• 2020-2022 Ski-doo MXZ XRS 850 E-TEC EFI L/C
• 2021 Ski-doo Renegade 600 Sport EFI L/C
• 2019-2022 Ski-doo Renegade 600R Adrenaline E-TEC
• 2019-2022 Ski-doo Renegade 600R Enduro E-TEC
• 2017-2022 Ski-doo Renegade 850 Adrenaline E-TEC
• 2018 Ski-doo Renegade 850 Back Country E-TEC
• 2019-2022 Ski-doo Renegade 850 Enduro E-TEC
• 2022 Ski-doo Renegade X 600 HO E-TEC EFI L/C
• 2017 Ski-doo Renegade X 850 E-TEC
• 2020-2022 Ski-doo Renegade X 850 E-TEC EFI L/C
• 2020-2022 Ski-doo Renegade XRS 850 E-TEC EFI L/C
• 2021-2022 Ski-doo Skandic 600 SWT HO E-TEC
• 2021-2022 Ski-doo Skandic 600 WT ACE
• 2019-2022 Ski-doo Summit 600R Sport
• 2017-2022 Ski-doo Summit 850 E-TEC Turbo
• 2017 Ski-doo Summit X 850 E-TEC 154in
• 2020-2022 Ski-doo Summit X 850 E-TEC Expert Package 165in EFI L/C

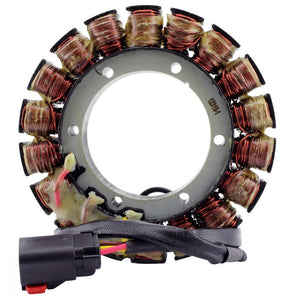

Note: Image is for reference only, actual product may vary slightly.
