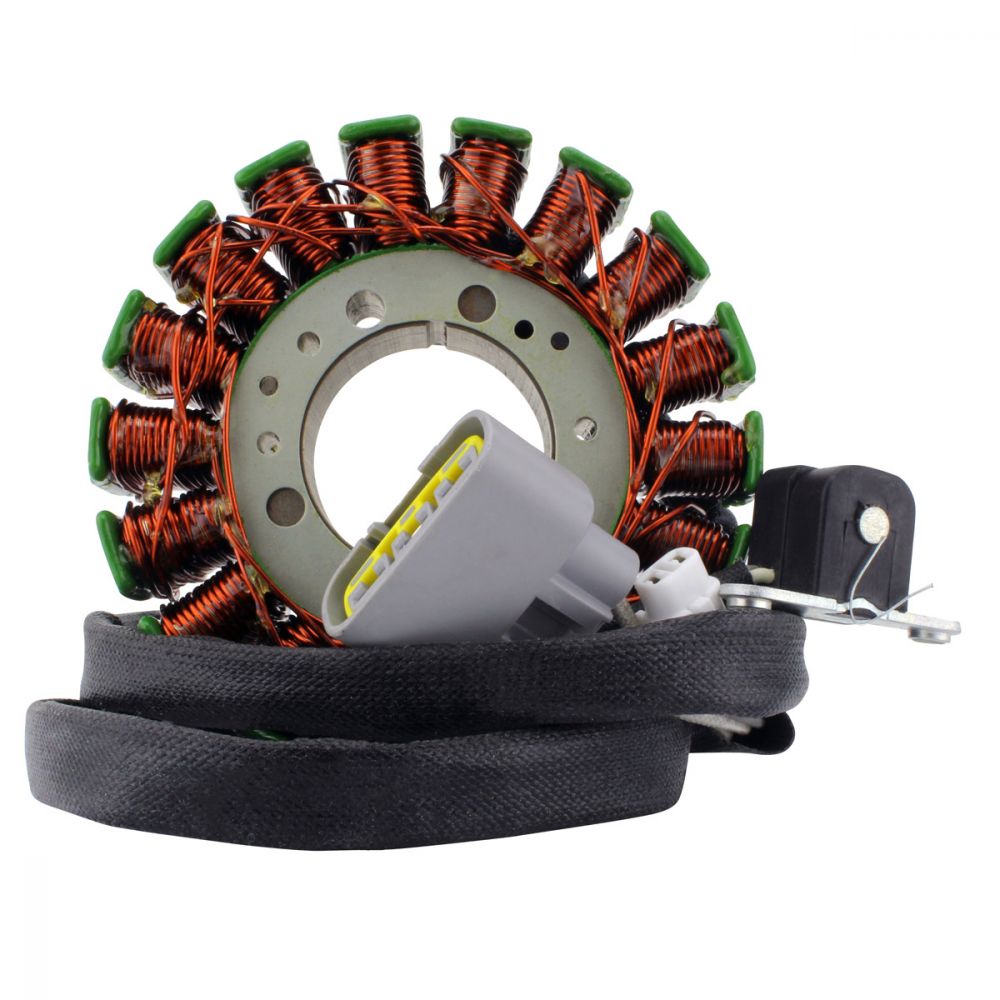

RMStator Generator Stator RMS010-107233

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 23 mm
Length of wires stator to grommet: 190 mm
Length of wires grommet to plug: 910 mm
Length of pickup coil's wire to grommet: 120 mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.7 ohms +-20%
Pickup: Grey to Black = 512 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-107233

Fitment:

• 2017-2019 Arctic Cat M9000 Sno Pro 162in
• 2017-2019 Arctic Cat XF 9000 Cross Country Limited EFI L/C
• 2018 Arctic Cat XF 9000 Crosstour EFI L/C
• 2020 Arctic Cat XF 9000 Crosstour EFI L/C
• 2017-2018 Arctic Cat XF 9000 Crosstrek EFI L/C
• 2017-2019 Arctic Cat XF 9000 High Country Limited EFI L/C
• 2017 Arctic Cat ZR 9000 Limited EFI L/C
• 2019 Arctic Cat ZR 9000 Limited EFI L/C
• 2017 Arctic Cat ZR 9000 LXR EFI L/C
• 2017-2019 Arctic Cat ZR 9000 RR EFI L/C
• 2017-2019 Arctic Cat ZR 9000 Sno Pro EFI L/C
• 2017-2021 Arctic Cat ZR 9000 Thundercat EFI L/C

Note: Image is for reference only, actual product may vary slightly.
