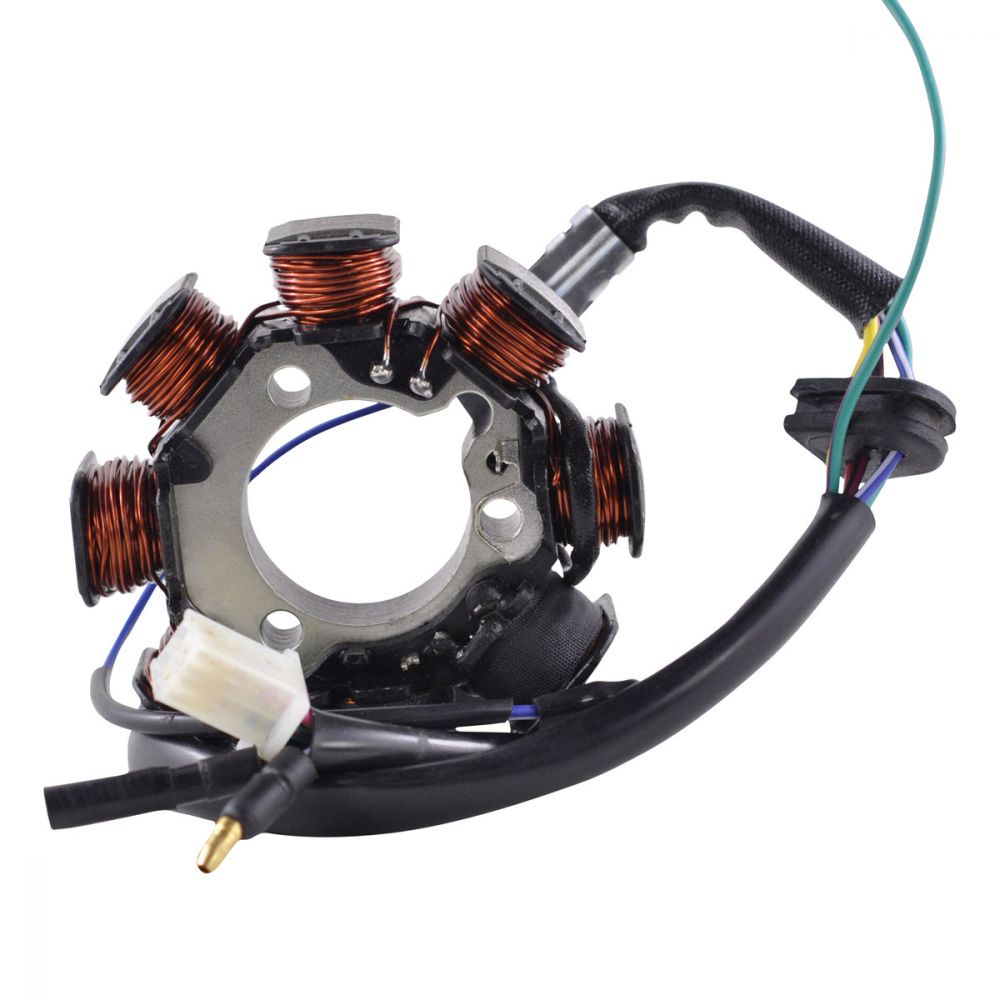

RMStator Generator Stator RMS010-107369

Brand new aftermarket Stator

• Direct replacement to your original unit
• You must re-install your original grommet (see picture)
• Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 19 mm
Length of wires stator to grommet: 125 mm
Length of wires grommet to plug #1: 395 mm
Length of wires grommet to plug #2: 560 mm
Length of pickup coil's wire to grommet: 55 mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.5 ohms +-20%
Pickup: Grey to Black = 507 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-107369

Fitment:

• 2018-2022 Yamaha Kodiak 450 YFM450 4x4 Auto

Note: Image is for reference only, actual product may vary slightly.
