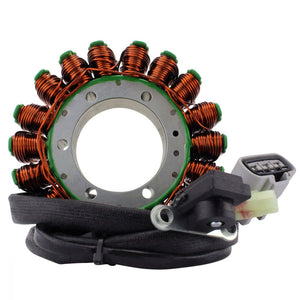

RMStator Generator Stator RMS010-107430

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 54mm
Exterior diameter: 124mm
Thickness: 25mm
Length of wires clamp to connectors: 80mm
Length of wires pickup coil to grommet: 400 & 830mm
Length of pickup coil's wire to grommet: 30mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.6ohms +-20%
Pickup: Yellow to White/Yellow = 116ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-107430

Fitment:

• 2017-2019 Honda Rebel 500 CMX500

Note: Image is for reference only, actual product may vary slightly.
