RMStator Generator Stator For 1986-1995 Honda XR250R RMS010-107694

RMStator Generator Stator For 1986-1995 Honda XR250R RMS010-107694

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 35 mm
Exterior diameter: 93 mm
Thickness: 18 mm
Length of wires stator to grommet: 85 mm
Length of wires grommet to plug: 485 mm

Other specifications:

Number of wires: 3
Number of plugs: 3
Number of pins: 3
Number of poles: 8
Wire to wire resistance:
Alternator: Yellow to Pink = 1 ohm +-20%
Alternator: Yellow to ground = O.L
Source: Black/Red to Ground = 129 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-107694

Fitment:

• 1986-1995 Honda XR250R

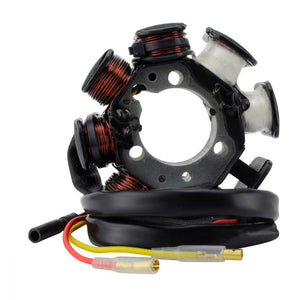

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
31120-KT1-004
