RMStator Generator Stator RMS010-107700

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 29 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 85 mm
Length of wires grommet to plug: 590 mm
Length of pickup coil's wire to grommet: 65 mm

Other specifications:

Number of wires: 6
Number of plugs: 4
Number of pins: 6
Number of poles: 8
Wire to wire resistance:
Alternator: White to Yellow = 0.5 ohms +-20%
Alternator: White to ground = O.L
Pickup: Black/Red to Red/White= 14 ohms +-20%
Source: Green to Red = 104 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-107700

Fitment:

• 1998-1999 KTM 125 Duke
• 2001 KTM 125 EXC
• 2000 KTM 125 EXC F
• 2003 KTM 125 EXC F
• 2000-2001 KTM 125 EXE
• 2000-2003 KTM 125 MXC
• 2000-2004 KTM 125 SX
• 1999-2001 KTM 125 SXS
• 2003 KTM 125 SXS
• 1999 KTM 200 EGS
• 2000-2004 KTM 200 EXC
• 2001 KTM 200 MXC
• 2003 KTM 200 MXC
• 2000 KTM 200 SX
• 2002-2004 KTM 200 SX
• 2001 KTM 250 EXC
• 2004 KTM 250 EXC
• 2000 KTM 250 EXC F
• 2002 KTM 250 EXC F
• 2000 KTM 250 MXC
• 2002 KTM 250 MXC
• 2000-2002 KTM 250 SX
• 2004 KTM 250 SX
• 2003 KTM 250 EXE
• 2000-2002 KTM 300 EXC
• 2004 KTM 300 EXC
• 2000-2004 KTM 300 MXC
• 2000-2002 KTM 300 SX
• 2003 KTM 300 EXE
• 2000-2002 KTM 380 EXC F
• 2000-2001 KTM 380 MXC
• 2000-2001 KTM 380 SX
• 1997 KTM Jackpinner 200

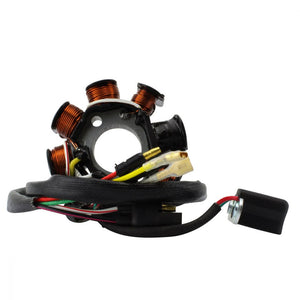

Note: Image is for reference only, actual product may vary slightly.
