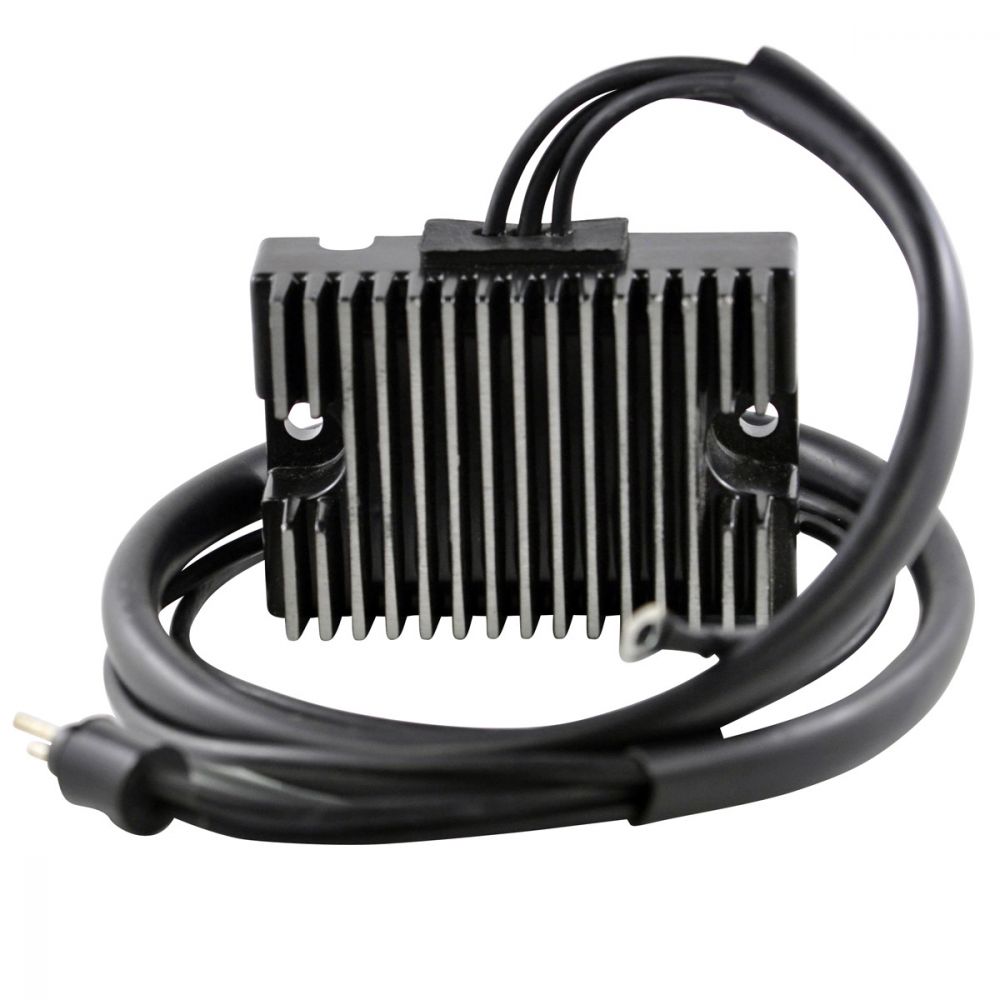

RMStator Mosfet Voltage Regulator RMS020-102638
Customer Ratings
RMStator Mosfet Voltage Regulator RMS020-102638
RMStator Mosfet Voltage Regulator RMS020-102638
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Brand new Mosfet Voltage Regulator Rectifier
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- All shipped products are tested
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Technical Data
Dimensions:
Width: 68 mm
Length: 94 mm
Height: 34 mm
Wires length: 760 & 1370 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 1
Number of pins: 2
Number of wires: 3
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: 15V
Operation Temperature: -20° to 85°
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS020-102638
Fitment:
- 1984-1985 Harley-Davidson Roadster XLS
- 1984-1985 Harley-Davidson Sportster 1000 XLH
- 1986-1987 Harley-Davidson Sportster 1100 XLH1100
- 1988-1990 Harley-Davidson Sportster 1200 XLH1200
- 1986-1990 Harley-Davidson Sportster 883 XL883
Note: Image is for reference only, actual product may vary slightly.
