RMStator Voltage Regulator RMS020-104501

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

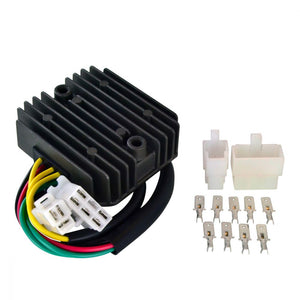

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Technical Data

Dimensions:
Width: 90 mm
Length: 80 mm
Height: 30 mm
Stator wire length: 300 mm
Battery wire length: 350 mm
Fixation holes center to center: 68 mm

Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS020-104501

Fitment:

• 1982 Honda CX500C Custom
• 1982 Honda CX500T Turbo
• 1983 Honda CX650T Turbo
• 1989-1990 Honda Elite 250 CH250
• 1984 Honda Interceptor 1000 VF1000F
• 1985-1986 Honda Interceptor 1000 VF1000R
• 1984-1986 Honda Interceptor 500 VF500F
• 1984-1985 Honda Interceptor 700 VF700F
• 1983-1984 Honda Interceptor 750 VFR750F
• 1984-1985 Honda Sabre 700 VF700S
• 1981-1982 Honda Silver Wing 500 GL500I Interstate
• 1983 Honda Silver Wing 650 GL650I Interstate
• 1982-1983 Honda V45 Sabre VF750S
• 1984-1985 Honda V65 Sabre VF1100S

Note: Image is for reference only, actual product may vary slightly.
