RMStator 50 AMP Regulator RMS020-106974

Name: RMStator 50 AMP Regulator RMS020-106974
Brand: RMStator
SKU: RMS020-106974-RMSTATOR-0924-A
Price: 139.0 USD
Availability: InStock

$139.00~~$145.26~~

Customer Ratings

4.9/5 (546 Reviews)

4.81/5 (1,689 Reviews)

RMStator 50 AMP Regulator RMS020-106974

$139.00~~$145.26~~

MPN: RMS020-106974

Questions? Call or text us at:888-927-3076

Item is in stockOnly 1 left in stockItem is out of stock Item is unavailable

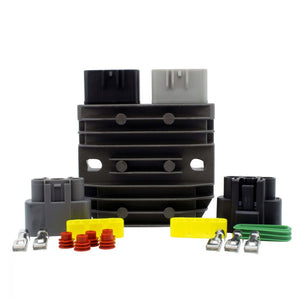

RMStator 50 AMP Regulator RMS020-106974

WHY USE SERIES ENHANCED TECHNOLOGY?

Runs much cooler than the Shunt and MOSFET voltage regulator rectifier.

Power only flows through the electrical components when the battery is charging.

Allows the stator to have lower current flowing when not used, extending its lifetime.

The regulator is easier to mount because it's smaller than the OEM one.

With enhanced technology design

This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part.

THE SERIES VOLTAGE REGULATION TECHNOLOGY

RMSTATOR's new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators. A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely. This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

Brand new series voltage regulator rectifier

THE ULTIMATE SOLUTION TO YOUR REGULATOR RECTIFIER PROBLEMS!It is time to update or replace your voltage regulator with the advanced series type.It runs cooler than all OEM, Shunt or MOSFET, diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
The quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components
All shipped products are tested

We even include the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Technical Data

Dimensions:
Width: 84 mm
Length: 90 mm
Height: 32 mm
Fixation holes center to center: 69 mm

Other specifications:
Number of plugs: 2
Number of pins: 5

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
