RMStator Voltage Regulator RMS020-107516
Customer Ratings
RMStator Voltage Regulator RMS020-107516
RMStator Voltage Regulator RMS020-107516
BENEFITS OF SERIES VOLTAGE REGULATORS
SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and way much cooler than OEM parts.
This series voltage regulator is an aftermarket replacement to the renowned SH847 voltage regulator .
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
The regulator is easier to mount because it is smaller than the OEM one.
RMSTATOR's new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

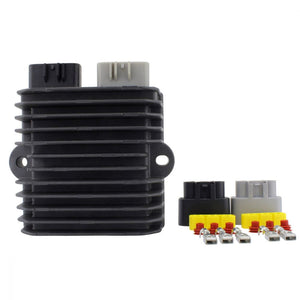

INSTALL LIKE A PROWe include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.
Technical Data
Dimensions:
Width: 119 mm
Length: 100 mm
Height: 38 mm
Fixation holes center to center: 100 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS020-107516
Fitment:
- 2014-2019 Suzuki Vstrom 1000 DL1000
- 2018-2019 Suzuki Vstrom 1000 DL1000XAL8 XT ABS
- 2020-2021 Suzuki Vstrom 1050 DL1050
- 2020 Suzuki Vstrom 1050 DL1050 XT
Note: Image is for reference only, actual product may vary slightly.
